Datasheet(CN) Datasheet(EN) PC-Gentec-EO User's Manual THZ-D User's Manual

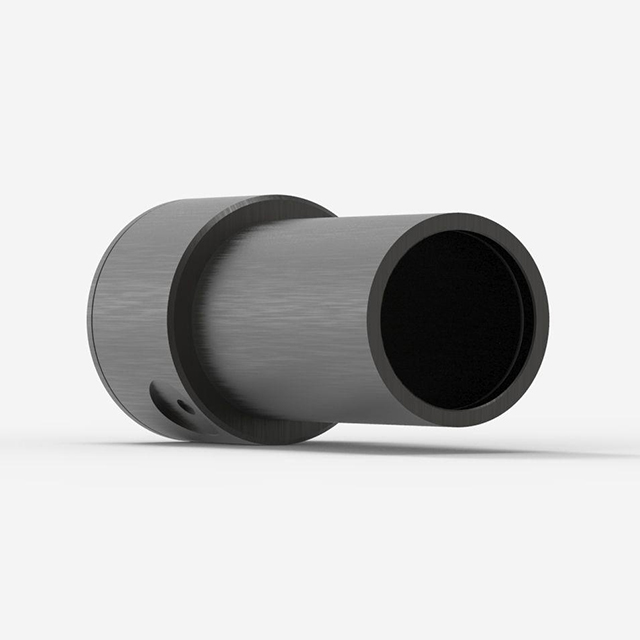

Gentec-EO THZ9D-20mS-BL-D0 THz detector for power measurements up to 20 mW.
Key Features
Relative Measurements from 0.1 to 30 THz
Broadband, room temperature operation, easier to use and less expensive than a Golay cell
Flat Spectral Response
Get the best precision accross the entire wavelength range.
Measure Higher Powers
Up to 3 W of continuous power with the THZ12D model, the highest in our THz range of products
Large Aperture
Models range from 9 to 12 mm ? aperture.
Calibrated at 10.6 μm
THZ-D detectors are calibrated at a single wavelength (10.6 μm) and include wavelength correction data from 10.6 to 440 μm. They are used for relative measurements outside that range.
Specifications
| Measurement capabilities | |
| Maximum average power | 20 mW |
| Noise equivalent power | 300 nW |
| Spectral range | 10 - 3000 μm |
| Frequency | 0.1 - 30 THz |
| Typical rise time | 0.2 s |
| Typical power sensitivity | 120 V/W |
| Power calibration uncertainty | ±5.0 % |
| Repeatability | ±0.5 % |
| Chopping frequency | 10 Hz |
| Minimum repetition rate | 1000 Hz |
| Damage thresholds | |
| Maximum average power density | 0.05 W/cm2 |
| Maximum energy density | 0.1 J/cm2 |
| Physical characteristics | |
| Aperture diameter | 9 mm |
| Absorber | BL |
| Dimensions | 38.1? x 26.2 mm |
| Weight | 0.09 kg |
