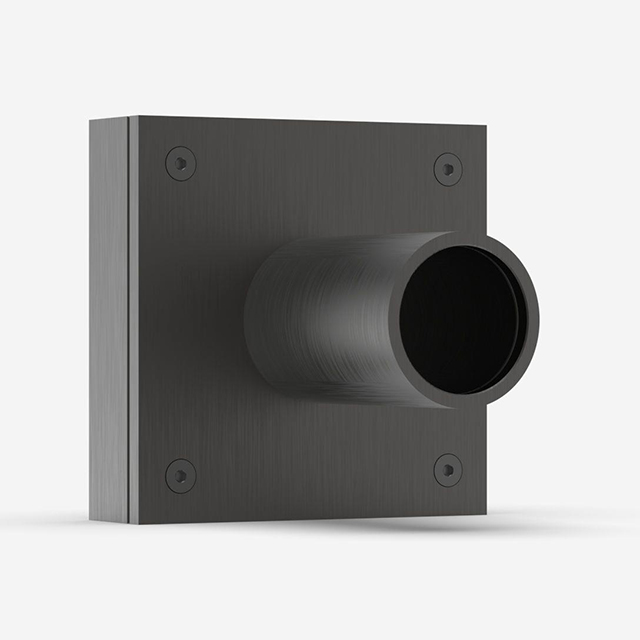

Gentec-EO THZ12D-3S-VP-D0 THz Detector

Updated:2025-03-13

Brand: Gentec-EO
Model: THZ12D-3S-VP-D0
Description: Gentec-EO THZ12D-3S-VP-D0 THz detector for power measurements up to 3 W.
Data download

Feedback
WeChat

QQ

Online Service

Product Details

Gentec-EO THZ12D-3S-VP-D0 THz Detector Description：

Datasheet(CN) Datasheet(EN) PC-Gentec-EO User's Manual THZ-D User's Manual

Gentec-EO THZ12D-3S-VP-D0 THz detector for power measurements up to 3 W.

Key Features

Relative Measurements from 0.1 to 30 THz

Broadband, room temperature operation, easier to use and less expensive than a Golay cell

Flat Spectral Response

Get the best precision accross the entire wavelength range.

Measure Higher Powers

Up to 3 W of continuous power with the THZ12D model, the highest in our THz range of products

Large Aperture

Models range from 9 to 12 mm ? aperture.

Calibrated at 10.6 μm

THZ-D detectors are calibrated at a single wavelength (10.6 μm) and include wavelength correction data from 10.6 to 440 μm. They are used for relative measurements outside that range.

Specifications

Measurement capabilities
Maximum average power	3 W
Noise equivalent power	0.5 μW
Spectral range	10 - 3000 μm
Frequency	0.1 - 30 THz
Typical rise time	3 s
Typical power sensitivity	200 mV/W
Power calibration uncertainty	±8.0 %
Repeatability	±0.5 %
Thermal drift	12 μW/°C
Minimum measurable power	50 - 100 μW
Minimum repetition rate	7 Hz
Damage thresholds
Maximum average power density	30 W/cm2
Maximum energy density	1 J/cm2
Physical characteristics
Aperture diameter	12 mm
Absorber	VP
Dimensions	73H x 73W x 20D mm (72D mm with tube)
Weight	0.32 kg
