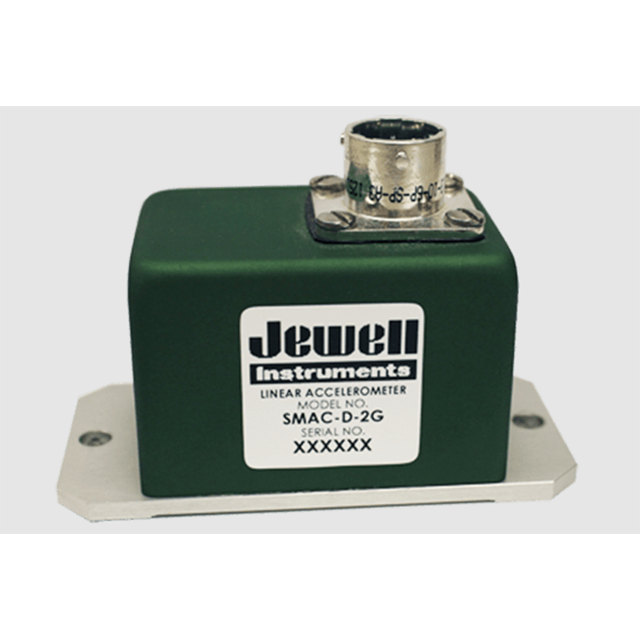

Jewell SMA Series Linear Accelerometer

Updated:2025-09-21

Brand: Jewell
Model: SMA
Description: The Jewell SMA Series accelerometer is a low cost, high precision sensor designed with very high accuracy. Applications include robotics, construction equipment, industrial measurement and control, an
Data download

Feedback
WeChat

QQ

Online Service

Product Details

Jewell SMA Series Linear Accelerometer Description：

Datasheet Drawing

The Jewell SMA Series accelerometer is a low cost, high precision sensor designed with very high accuracy. Applications include robotics, construction equipment, industrial measurement and control, and precision machining. All Emerald Series accelerometers are RoHS compliant.

Specifications

Input Range (g)	±0.25	±0.5	±1	±2
Full Range Output (FRO Vdc ±0.5%)¹	±5	±5	±5	±5
Non-linearity (%FRO max)²	0.02	0.02	0.05	0.05
Scale Factor (Volts/g, nom)	20.0	10.0	5.0	2.5
Scale Factor Temperature Sensitivity (PPM/°C max)	100	100	100	100
Bandwidth (-3dB, Hz nom)	5.0	5.0	5.0	5.0
Output Axis Misalignment (° max)	0.50	0.50	0.50	0.50
Pendulous Axis Misalignment (° max)	0.50	0.50	0.50	0.50
Resolution & Threshold (μg max)	3.5	3.5	3.5	3.5

Features	? Extremely Rugged ? Lower Cost than traditional Force-Balanced Accelerometers ? High Accuracy ? Greater Precision than MEMS Technologies ? ±5 V DC Output ? Dual-Ended Power Input ? RoHS Compliant
Applications	? Aerospace ? Military ? Robotics ? Academic Research ? Wind Turbine Controls ? Track Monitoring and Testing ? Vehicle Wheel Alignment
