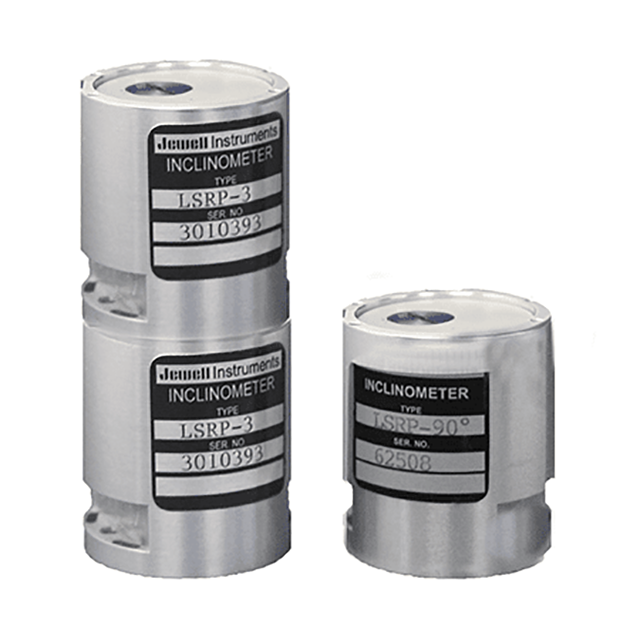

Jewell LSRP Single-Axis Analog Inclinometer

Updated:2025-11-09

Brand: Jewell
Model: LSRP
Description: The Jewell LSRP Series inclinometer is an extremely sensitive, rugged transducer designed to provide horizontal angle or vertical deviation measurements with virtually infinite resolution. These fluid
Data download

Feedback
WeChat

QQ

Online Service

Product Details

Jewell LSRP Single-Axis Analog Inclinometer Description：

Datasheet LSRP Outline Drawing Stacked LSRP Outline Drawing

The Jewell LSRP Series inclinometer is an extremely sensitive, rugged transducer designed to provide horizontal angle or vertical deviation measurements with virtually infinite resolution. These fluid-damped compact, cylindrical-shaped sensors are stackable to meet the needs of applications with space constraints while facilitating the use of several inclinometers for multi-axis measurements.

Specifications

Input Range (°)	±1.0	±3.0	±14.5	±30.0	±90.0
Full Range Output (VDC, FRO ±1%)¹	±5	±5	±5	±5	±5
Non-linearity (%FRO max)2	0.05	0.05	0.02	0.02	0.05
Scale Factor (Volts/g, nominal)	286.5	95.5	20.0	10.0	5.0
Scale Factor Temperature Sensitivity (PPM/°C maximum)	400	300	100	60	60
Bandwidth (-3dB, Hz, nominal)	0.5	2.0	15.0	20.0	40.0
Transverse Axis Misalignment (° maximum)	0.10	0.15	0.25	0.50	1.00
Output at 0° Tilt (Volts, maximum)	±0.10	±0.04	±0.02	±0.02	±0.02
0° Output Temperature Sensitivity (Volts/°C maximum)	0.005	0.003	0.001	0.0005	0.0003
Resolution & Threshold (μ)	1	1	1	1	1

Weight	4 oz
Dimensions	1.13 × 1.165 × 1.60 in
Features	? ±1° to ±90 Input Full Range ? Only 1.4” diameter X 1.60” Tall in Size ? Withstands 20 grms of vibration ? Stackable for 2-Axis Sensing ? Solder Pins Terminations ? RoHS version available
Applications	? Heavy Construction Grading ? Ship and Barge Leveling ? Deviation Surveys ? Continuous Casting ? Weapons Platform Leveling ? Steel Mill Ladle Position ? Oil and Gas Well Bore Mapping ? Geophysical Monitoring ? Mobile Antenna Positioning

Input Voltage Range (VDC)⁴	±12 to ±18
Input Current (mA, max)	0.002
Output Impedance (Ω, nominal)	15
Noise (V rms, maximum)	15k	5k	15k	8k	4k

Operating Temperature Range	-18°C to +71°C
Storage Temperature Range	-40°C to +71°C
Shock	1500g, 0.5 msec, ? sine
Seal	MIL-STD 202, Method 112
