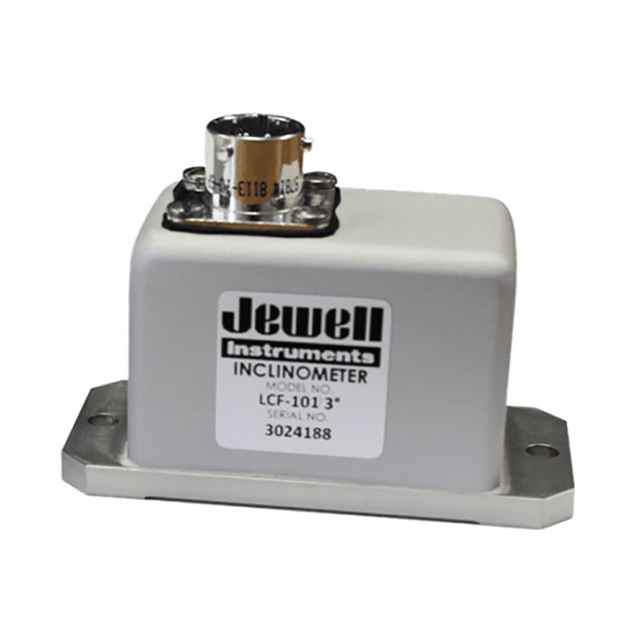

Jewell LCF-100 Single-Axis Analog Inclinometer

Updated:2025-11-08

Views:335

  • Brand: Jewell
  • Model: LCF-100
  • Description: The Jewell LCF Series flexure suspension servo fluid damped inclinometer is a ±1° to ±90° device designed for applications where high levels of shock and vibration are present. LCF units are character
  • Feedback

  • WeChat

    QQ

    Online Service

Product Details

Jewell LCF-100 Single-Axis Analog Inclinometer Description：

Datasheet Outline Drawing

The Jewell LCF Series flexure suspension servo fluid damped inclinometer is a ±1° to ±90° device designed for applications where high levels of shock and vibration are present. LCF units are characterized by excellent turn-on repeatability and very low hysteresis. This unit is available with a pin terminal connection or a 6-pin cable connection.

Specifications

Input Range (°) ±1.0 ±14.5 ±30.0 ±90.0
Full Range Output (VDC, FRO ±5%)1 ±5 ±5 ±5 ±5
Non Linearity (%FRO max)2 0.05 0.02 0.02 0.05
Scale Factor (Volts/g, nominal) 286.5 20.0 10.0 5.0
Scale Factor Temperature Sensitivity (PPM/°C maximum) 100 100 100 100
Bandwidth (-3dB, Hz, nominal) 3.0 30.0 30.0 30.0
Transverse Axis Misalignment (° maximum) 0.15 0.05 1.00 1.00
Bias (Volts, maximum) 0.500 0.100 0.100 0.050
0° Tilt Temperature Sensitivity (Volts/°C maximum) 0.015 0.001 0.0005 0.0003
Resolution & Threshold (μ)3 1 1 1 1
Dimensions 3.10 × 1.525 in
Features ? Direct Bogie Mount
? 3-30 Hz Bandwidth
? Milligram Bias and Scale Factor
? High Level ± 5Vdc Output
? -40°C to +80°C Temperature Rating
Applications ? Heavy Construction, Grading
? Ship and Barge Leveling
? Deviation Surveys
? Continuous Casting for Steel Industry
? Weapons Platform Leveling
? Aircraft Flight Control
? Robot Vertical Referencing
? Auto Manufacturing Suspension Install
? Geophysical Low Range Tilt Sensing
? Platform Orientation
? Dam Sluice Gate Control
Input Voltage Range (VDC) ±12 to ±18
Input Current (mA, maximum) ±15
Noise (Vrms, maximum) 0.002
Output Impedance (Ohms, nominal) 100
Operating Temperature Range -40°C to +80°C
Survival Temperature Range -60°C to +90°C
Shock 1000g, 1 msec, ? sine
Seal Epoxy
