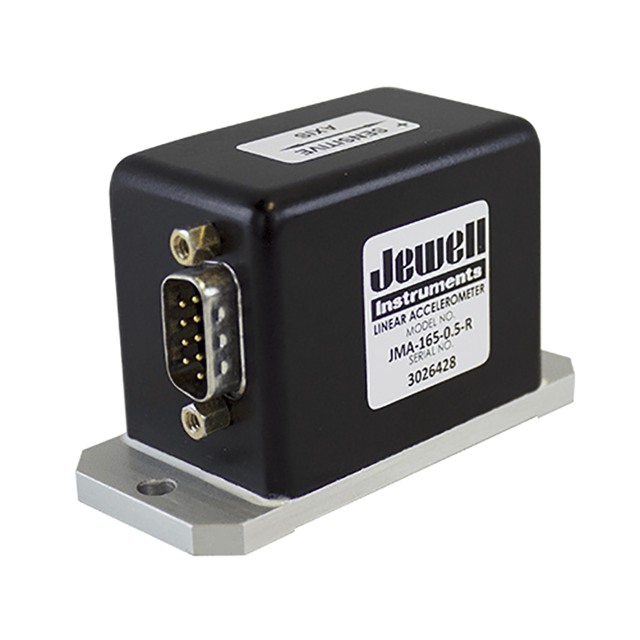

Jewell JMA-165-R/RH Analog MEMS Accelerometer Series

Updated:2025-09-24

Brand: Jewell
Model: JMA-165-R/RH
Description: The Jewell Instruments JMA-165 MEMS accelerometers are a cost effective and viable alternative to traditional force balance designs. This mighty little sensor is CENELEC, AREMA certified, and RoHS com
Data download

Feedback
WeChat

QQ

Online Service

Product Details

Jewell JMA-165-R/RH Analog MEMS Accelerometer Series Description：

Datasheet Drawing

The Jewell Instruments JMA-165 MEMS accelerometers are a cost effective and viable alternative to traditional force balance designs. This mighty little sensor is CENELEC, AREMA certified, and RoHS compliant. With options for heated or non-heated, and available filtering, you can customize the perfect sensor for your application.

Specifications

Input Range (g)	±0.5	±1
Full Range Output (FRO VDC ±0.75%)¹	±5	±5
Non-linearity (% FRO maximum)²	0.2	0.1
Scale Factor (Volts/g, nominal)	10.00	5.00
Warm Up Time (Sec, maximum)	1	1
Scale Factor Temperature Sensitivity (PPM /°C maximum)	300	150
Bandwidth (-3 dB, Hz nominal)	100	100
Transverse Axis Misalignment (° maximum)	0.70	0.70
Bias Range (g)	-0.01 to 0.01	-0.01 to 0.01
Bias Temperature Sensitivity (milli-g /°C maximum)	1	0.5
Nonrepeatability (g maximum)	0.002	0.001
Cross Axis Sensitivity, (G/G maximum)	0.01	0.005
Resolution and Threshold (mg maximum)	0.3	0.15

Features	? ±0.5G & ±1.0G full ranges ? CENELEC/AREMA certified ? Low-cost MEMS technology ? Internal heater available for reduced thermal drift ? RoHS Compliant ? Filtering Available
Applications	? Automated Train Controls ? Acceleration/Deceleration Control ? Rail Maintenance & Testing ? Train Performance Testing

Input Voltage Range (VDC)	±12 to ±18
Input Current (mA, max)	8
EMI	EN50155, EN50121, EN55011, EN61000, AREMA Part 11.5.1
Surge	EN61000
Output Impedance (ohm;, nominal)	1
Noise (grms, maximum)	0.005
