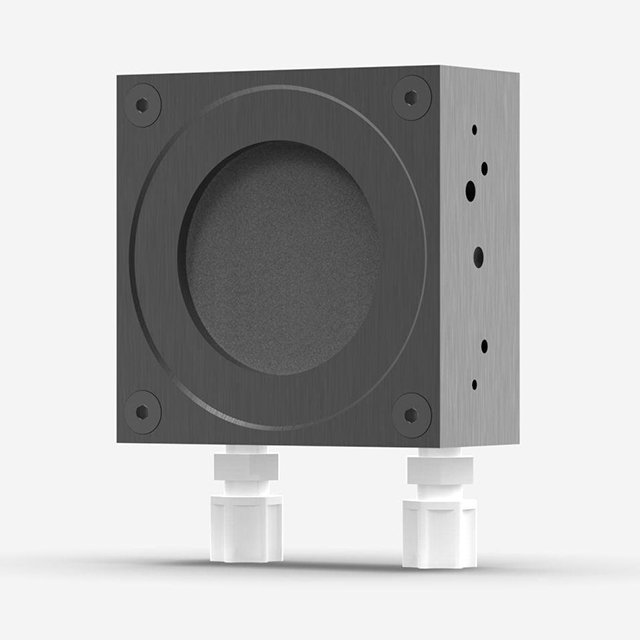

Gentec-EO UP55M-50W-W9-D0 Thermal Detector

Updated:2025-03-13

Views:162

Product Details

Gentec-EO UP55M-50W-W9-D0 Thermal Detector Description:

Datasheet(CN) Datasheet(EN) HP User's Manual PC-Gentec-EO User's Manual

Gentec-EO UP55M-50W-W9-D0 Thermal Detector for laser power measurement up to 50 W.

Measure extremely high average power density lasers with the W absorber

The W absorber can handle tightly focused beams thanks to its extremely high average power density damage threshold of 100 kW/cm2. It measures from UV to IR but is not suitable for CO2 laser wavelengths.

Ideal for UV lasers and tightly focused beams

Very low risk of damaging the equipment

Faster measurement with XNR Anticipation

Measure laser power up to 10x faster (model-dependant) with XNR AnticipationTM. Our proprietary algorithm looks at the rate at which the signal increases or decreases and combines this with calibration data to predict the result. The measurement is therefore calculated and displayed faster than the natural response of the detector.

Save several seconds to tens of seconds for each measurement

Shorter operation interruption

Faster laser output diagnostics

Increased productivity

No compromise on measurement accuracy

Optional INTEGRA (USB or RS-232) output

When you choose the INTEGRA output option you get an all-in-one measurement instrument that combines both the detector and the meter in one convenient product. Plug the detector in your PC, install our free software and start measuring.

The most cost-efficient solution

Same measurement performance as our other solutions

No compromise on interface functions and features

Compact solution for OEM applications and field servicing

Save money on recalibration with an all-in-one instrument

Android phone compatibility with optional INTEGRA output

The UP series is compatible with your Android device when you choose the INTEGRA (USB) output. You only need a USB-A to USB-C converter such as USBA-C and our free BLU mobile app available in the Google Play Store.

Most portable solution

No need to carry a laptop

Optional BLU (wireless) output

This detector can be purchased with an embedded wireless interface. Save money by not having to purchase a separate monitor. Download our free mobile app or PC software, activate your Bluetooth connection and start measuring your laser.

Create your optimal measurement setup without being limited by cable length or monitor location

Receive data at up to 30m from the detector with the same performance

Enjoy a safer work environment with less tangled cables

Save money on recalibration with an all-in-one instrument

Key Features

Modular Concept

Increase the power capability of your detector: 4 different cooling modules

Very High Damage Threshold

100 kW/cm2 in average power density

Very Large Aperture

55 mm effective aperture diameter, perfect for the largest beams

Highest Energy Readings in the Series

Measure single shot energy up to 500 J

Smart Interface

Containing all the calibration data

Specifications

Measurement capabilities
Maximum average power (continuous) 50 W
Maximum average power (1 minute) 85 W
Noise equivalent power 5 mW
Spectral range 0.193 - 10 μm
Typical rise time 3.5 s
Power calibration uncertainty ±2.5 %
Repeatability ±0.5 %
Measurement capabilities (Energy mode)
Typical energy sensitivity 0.02 mV/J
Maximum measurable energy 500 J
Noise equivalent energy 0.25 J
Minimum repetition period 11.1 s
Maximum pulse width 467 ms
Energy calibration uncertainty ±5 %
Damage thresholds
Maximum average power density 100 kW/cm2
Maximum energy density 1.1 J/cm2
1. At 1064 nm, 10 W CW. May vary with wavelength and average power.
2. At 1064 nm, 7 ns, 10 Hz. May vary with wavelength and pulse width.
Physical characteristics
Cooling Water
Aperture diameter 55 mm
Absorber W
Dimensions 119H x 89W x 46D mm
Weight 0.81 kg
