Gentec-EO UP55M-500W-H12-D0 Thermal Detector Description：

Datasheet (CN) Datasheet (EN) PC-Gentec-EO User's Manual BLU User's Manual INTEGRA User's Manual UP and XLP12 User's Manual

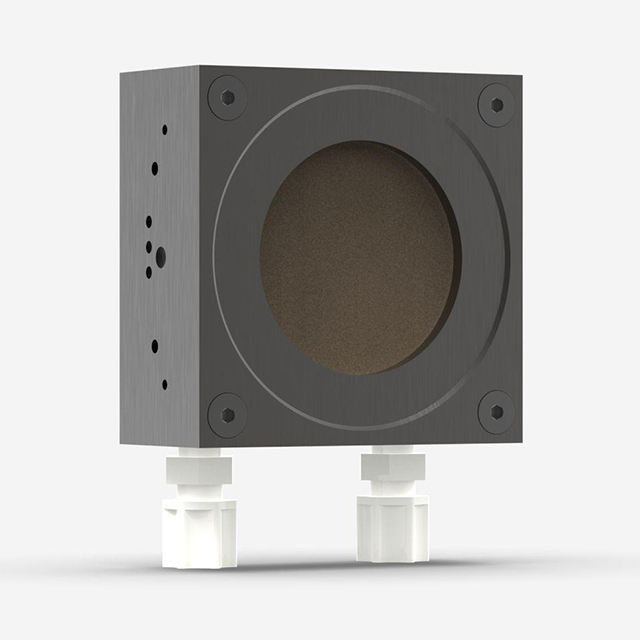

Gentec-EO UP55M-500W-H12-D0 Thermal detector for laser power measurement up to 500 W.

Optional INTEGRA (USB or RS-232) output

When you choose the INTEGRA output option you get an all-in-one measurement instrument that combines both the detector and the meter in one convenient product. Plug the detector in your PC, install our free software and start measuring.

The most cost-efficient solution

Same measurement performance as our other solutions

No compromise on interface functions and features

Compact solution for OEM applications and field servicing

Save money on recalibration with an all-in-one instrument

Optional BLU (wireless) output

This detector can be purchased with an embedded wireless interface. Save money by not having to purchase a separate monitor. Download our free mobile app or PC software, activate your Bluetooth connection and start measuring your laser.

Create your optimal measurement setup without being limited by cable length or monitor location

Receive data at up to 30m from the detector with the same performance

Enjoy a safer work environment with less tangled cables

Save money on recalibration with an all-in-one instrument

Versatile absorber suitable for most applications

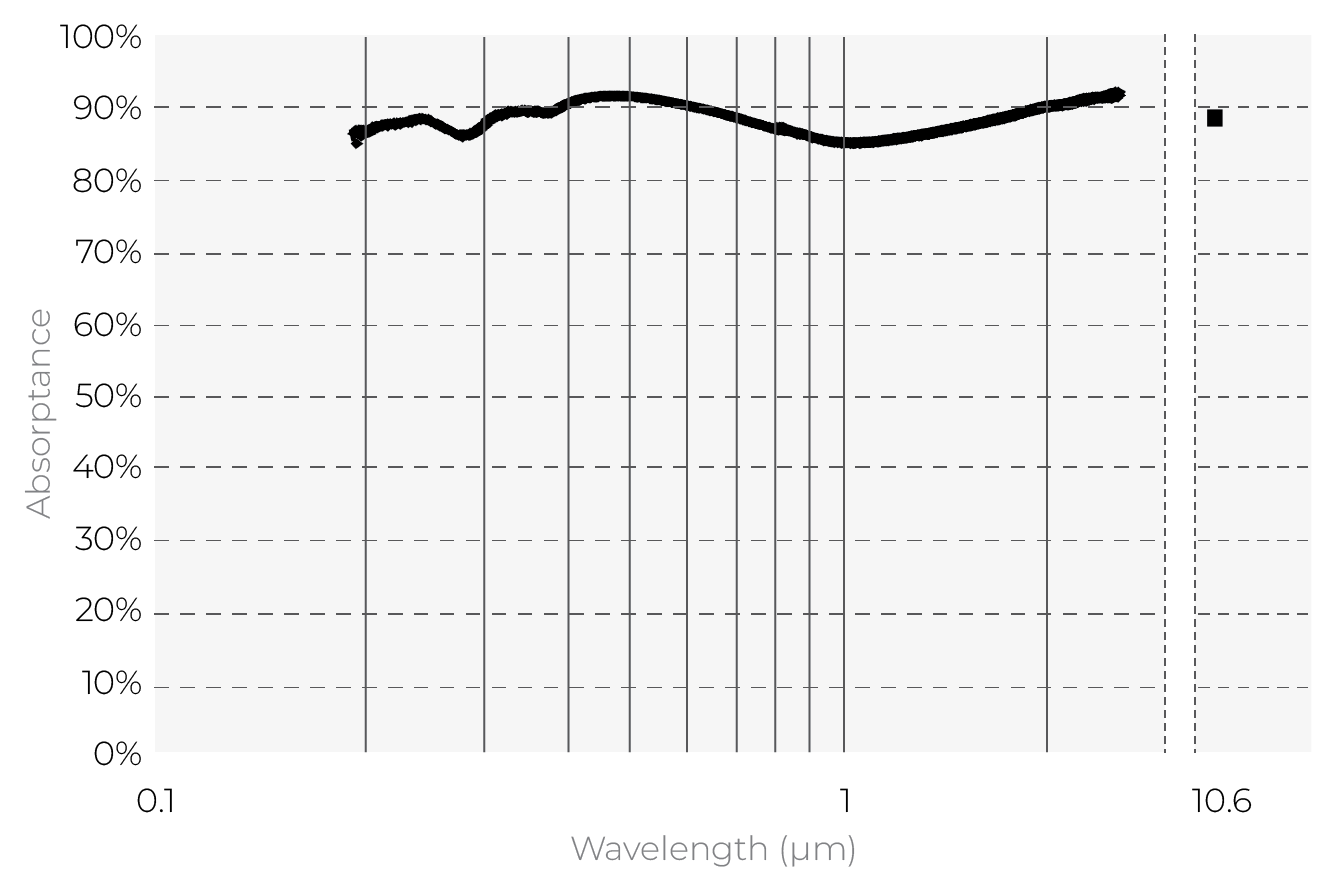

Our H absorber offers a spectral response that is both broadband and spectrally flat, making this power detector a versatile solution that can cover most laser power measurement needs. Our proprietary manufacturing method also gives this absorber good damage thresholds, for both average power density and energy density. It has a high absorption capacity and, therefore, generates a relatively low percentage of back reflection.

Useful for measuring a wide range of lasers

Low risk of damaging the equipment

Allows fast rise time

Faster measurement with XNR Anticipation

Measure laser power up to 10x faster (model-dependant) with XNR AnticipationTM. Our proprietary algorithm looks at the rate at which the signal increases or decreases and combines this with calibration data to predict the result. The measurement is therefore calculated and displayed faster than the natural response of the detector.

Save several seconds to tens of seconds for each measurement

Shorter operation interruption

Faster laser output diagnostics

Increased productivity

No compromise on measurement accuracy

Key Features

Modular Concept

Increase the power capability of your detector: 4 different cooling modules

High Performance

Fast Rise Time (2 sec)

High Damage Threshold (45 kW/cm2)

Compact Design

Only 32 mm thick (40S model)

Energy Mode

Measure single shot energy up to 200 J

Smart Interface

Containing all the calibration data

Specifications
