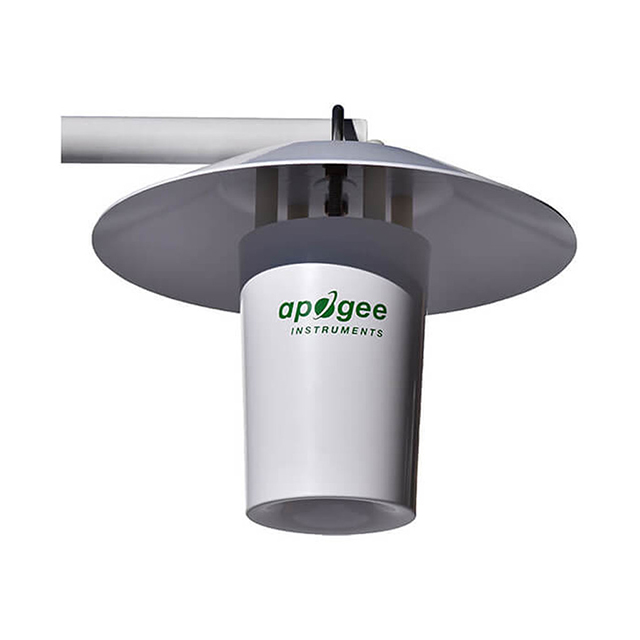

TS-210 24 V Aspirated Radiation Shield (Thermistor Included)

Updated:2025-03-13

Brand: Apogee
Model: TS-210
Description: The TS-210 model includes the TS-200 24 volt fan-aspirated radiation shield and an ST-110-SS thermistor. The unique aerodynamic shape and rugged, low-power fan make it the first research-grade fan-asp
Data download

Feedback
WeChat

QQ

Online Service

Product Details

TS-210 24 V Aspirated Radiation Shield (Thermistor Included) Functional Characteristic：

User's Manual

The TS-210 model includes the TS-200 24 volt fan-aspirated radiation shield and an ST-110-SS thermistor. The unique aerodynamic shape and rugged, low-power fan make it the first research-grade fan-aspirated shield that is practical for use on battery or solar powered stations. The shield provides excellent sensor protection and accommodates various combinations of thermistors, PRTs, and humidity probes using one of the sensor port adapter plugs. Click here for a list of compatible sensors. If you use a different sensor, please contact us directly to discuss compatibility. Typical applications include air temperature and humidity measurement in weather networks, often for weather forecasting, and solar energy sites. Fan-aspirated shields are also important in the precise measurement of air temperature ad humidity gradients above the land surface and in climate change monitoring.

TS-210 24 V Aspirated Radiation Shield (Thermistor Included) Drawing：

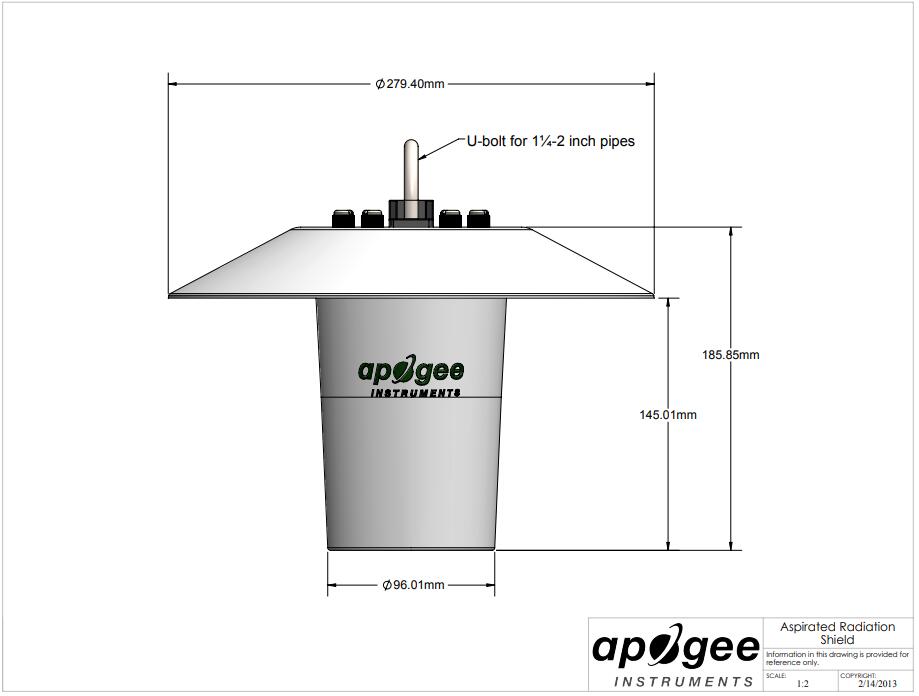

TS-210 Drawing

TS-210 24 V Aspirated Radiation Shield (Thermistor Included) Specification：

Difference among Individual Replicate Shields	Less than 0.1 C
Aspiration Rate	6 m/s at full speed, 3 m/s at half speed
Fan Input Voltage Requirement	14.0 to 27.6 V DC
Fan Current Draw	80 mA at full-speed, 25 mA at half-speed
Fan Dust and Water Protection	IP55
Operating Temperature Range	-40 to 70 C
Dimensions	220 mm height, 270 mm diameter
Mass	840 g
Cables	5 m of shielded, twisted-pair wire for fan and air temperature sensors with santoprene rubber, jacket (high water resistance, high UV stability, flexibility in cold conditions)
Temperature Sensor	ST-110
Warranty	4 years against defects in materials and workmanship
