SRA15 Series Albedometer

Updated:2025-03-13

Brand: Hukseflux
Model：SRA15
Description: SRA15 series spectrally flat Class B albedometer is an instrument that measures global and reflected solar radiation and the solar albedo, or solar reflectance. It is composed of two SR15 series spect
Data download

Feedback
WeChat

QQ

Online Service

Product Details

SRA15 Series Albedometer： Datasheet

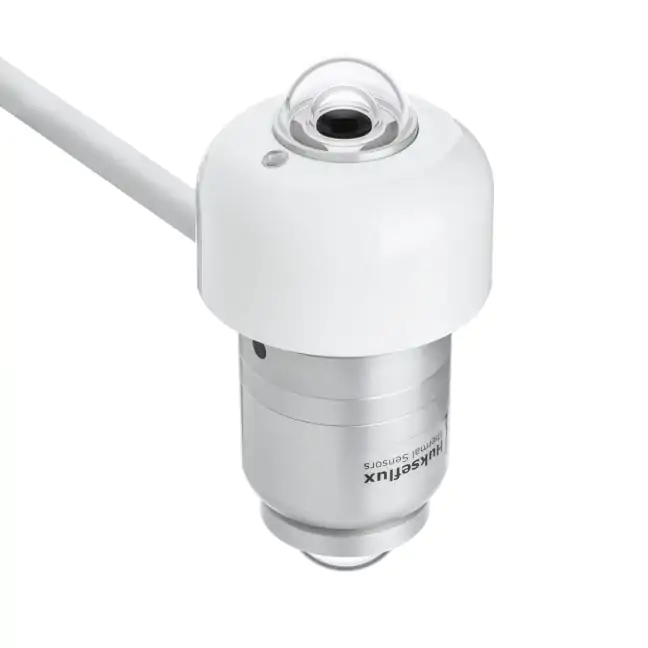

SRA15 Series Albedometer

SRA15 consists of two identical pyranometers model SR15, one facing up, and one facing down. To create an SRA15, the two sensors are combined with one AMF03 albedometer mounting kit. AMF03 includes a fixture with rod for mounting purposes and a glare screen. The user assembles these modular components into an SRA15 series albedometer. Mounting hardware, tools, mounting, and fixation instruction are part of AMF03. The modular design of SRA15 facilitates maintenance and calibration.

albedometer is an instrument composed of two pyranometers, the up-facing one measuring global solar radiation, the downfacing one measuring reflected solar radiation. You can then derive the solar albedo, or solar reflectance, and net solar radiation. Albedometers are used for general meteorological observations, building physics, roof reflectance studies, climate studies, and solar collector testing. A common application is for outdoor solar radiation balance measurements as part of a meteorological station. Albedometers are increasingly popular in bifacial PV module performance monitoring. This application requires horizontal leveling; a bubble level and a mounting rod are included.

Using the SRA15 albedometer is easy

The instrument is composed of two SR15 Spectrally Flat Class B pyranometers; the up-facing one measuring global solar radiation, the downfacing one measuring reflected solar radiation. When using SR15-A1, the irradiance in W/m2 in each direction is calculated by dividing the pyranometer output, a small voltage, by the sensitivity. Other models SR15-D1 and SR15-D2A2 models have digital outputs. The working principle and specifications of the pyranometers can be found in the SR15 series user manual. SRA15 can be connected directly to commonly used data logging systems.

Suggested Use

PV monitoring with bifacial solar modules

high-accuracy meteorological observations

building physics, roof reflectance studies

Areas of Application

Building physics / insulation, thermal comfort and energy budget measurement

Meteorology / surface energy flux measurement

Solar energy / PV system performance monitoring

SRA15 Series Albedometer Specifications：

Measurand	global solar radiation and reflected solar radiation
Optional measurand	albedo or solar reflectance, net solar radiation
SRA15 series specifications	:
Mounting	mounting rod with 15 x 10?3 m diameter
Rated operating temperature	-40 to +80 °C range
SR15	:
Included sensors	2 x identical ISO 9060 Spectrally Flat Class B pyranometer either SR15-D1, SR15-A1 or SR15-D2A2
Output	analog millivolt (SR15-A1), digital Modbus RTU over RS-485 (SR15-D1), or Modbus RTU over TTL and 4-20 mA (SR15-D2A2)
Calibration uncertainty	< 1.8 % (k = 2)
Calibration traceability	to WRR
Measurement range	0 to 2000 W/m2
Temperature response	< ± 2 % (-10 to +40 °C)
Standard cable length	5 m (see options)
AMF03	:
Included parts	1 x glare screen; 1 x AMF03 fixture with rod; 1 x conical positioner; 2 x M5x12 socket head cap screw; 1 x M6x8 socket head cap screw, 2 x M8x12 set screw, 1 x mounting and fixation instruction sheet
Options	longer cables, in multiples of 5 m, cable lengths above 20 m in multiples of 10 m
