P/N:SPZ17015 Stacked beam splitter Overview：

User's Manual

Laser Beam Attenuation with Stackable Partially Reflective Mirrors

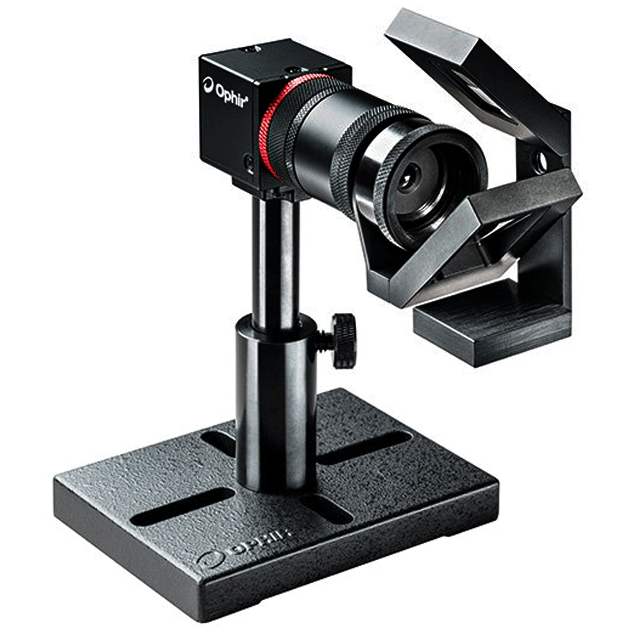

The stackable beam splitters are designed for maximum modularity and shortest beam path. They are compatible with almost all of our cameras having the standard C mount thread and can mount either to other attenuators or to the camera itself.

The stackable beam splitters are designed for maximum modularity and shortest beam path. They are compatible with almost all of our cameras having the standard C mount thread and can mount either to other attenuators or to the camera itself. Each beam splitter reflects ≤6% of the incoming beam and allows approximately ≥94% of the beam to pass directly through. By stacking 2 splitters ≤6% of ≤6% or 0.36% of the original beam intensity is directed into the camera. The beam splitters are mounted at 45 degree over the fixed or variable attenuators with a simple fastening ring and can be oriented in any direction with the beam coming from right, left, up, down, or front. The Beam Splitters will operate for wavelengths from 193nm - 2500nm. Damage threshold is >5J/cm2 for 10ns pulses.

An optional ?30mm clear aperture splitter allows for larger diameter incoming beams. Caution: Beam convergence and power density must be known at the imager so you don’t overflow the imager size and maximum power density at the imager. A different set of stackable beam splitters are specifically coated for optimization at 1064nm. Each beam splitter reduces the intensity to 1% of the input Beam. 2 stacked splitters will produce a sampling Beam with 0.01% intensity of the original beam.

P/N: Specifications of SPZ17015 Stacked beam splitter:
