SP-110-SS: Self-Powered Pyranometer

Updated:2025-03-13

Brand:APOGEE
Model: SP-110-SS
Description: The SP-110 is a self-powered, analog sensor with a 0 to 400 mV output. The sensor incorporates a silicon-cell photodiode with a rugged, self-cleaning sensor housing design, and high-quality cable term
Data download

Feedback
WeChat

QQ

Online Service

Product Details

SP-110-SS：自供電日射強(qiáng)度計(jì)概述：

User's Manual

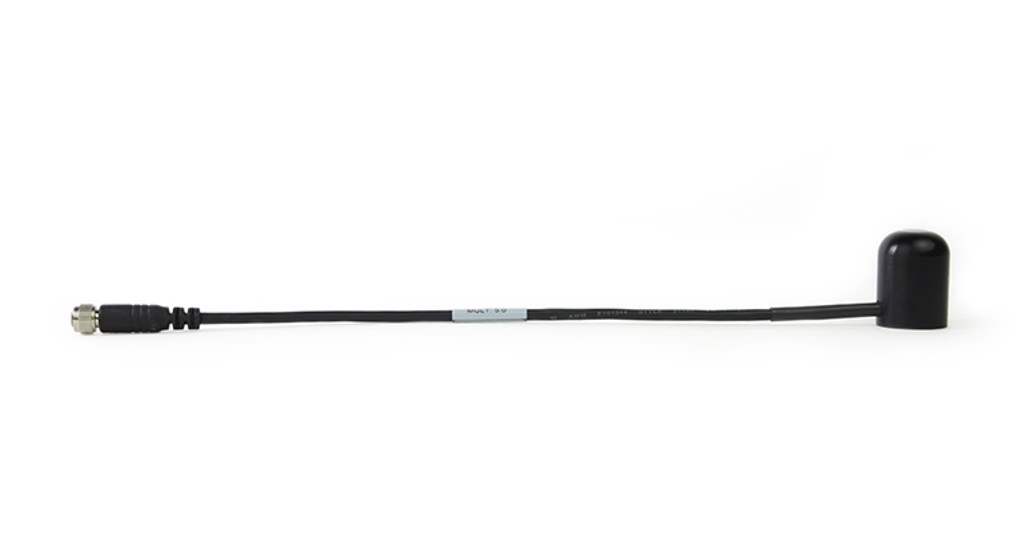

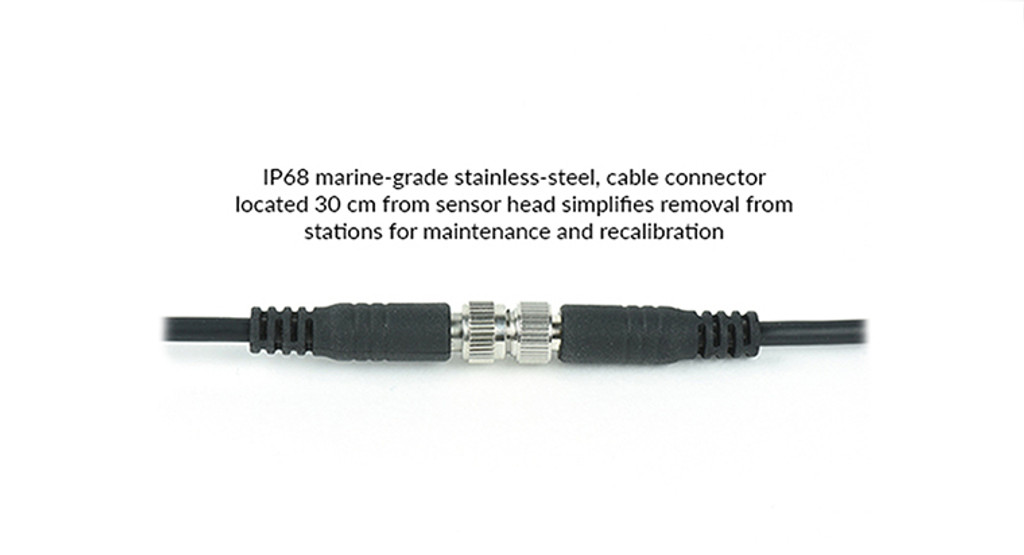

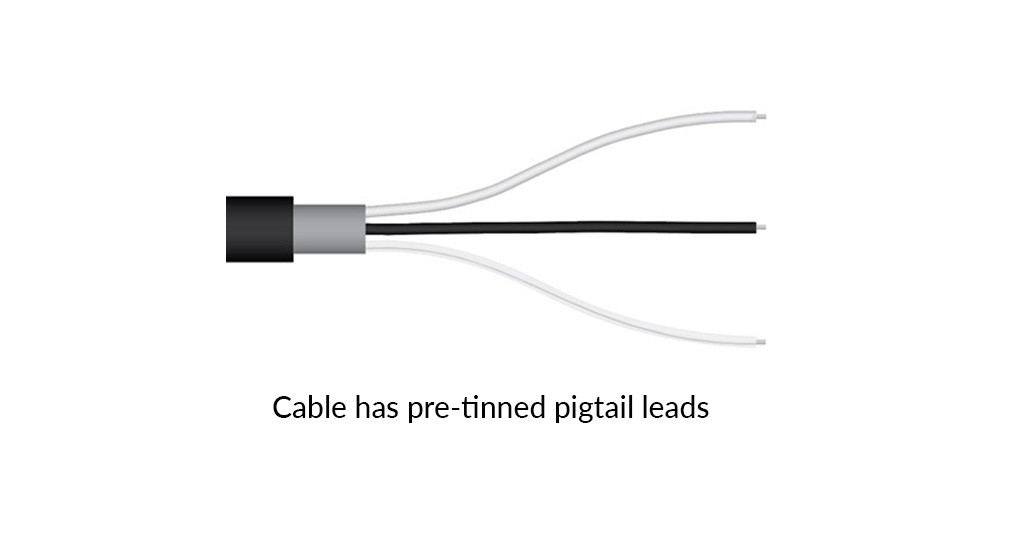

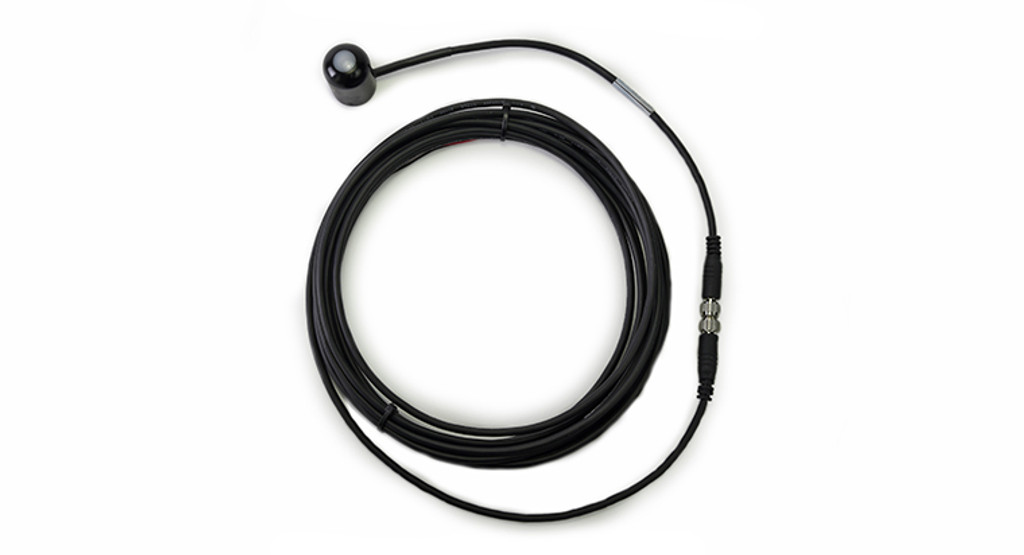

The SP-110 is a self-powered, analog sensor with a 0 to 400 mV output. The sensor incorporates a silicon-cell photodiode with a rugged, self-cleaning sensor housing design, and high-quality cable terminating in pre-tinned pigtail leads for easy connection to dataloggers and controllers. Typical applications include shortwave radiation measurement in agricultural, ecological, and hydrological weather networks. Sensors are also used to optimize photovoltaic systems. Sensor includes IP68 marine-grade stainless-steel cable connector 30 cm from head to simplify sensor removal and replacement for maintenance and recalibration.

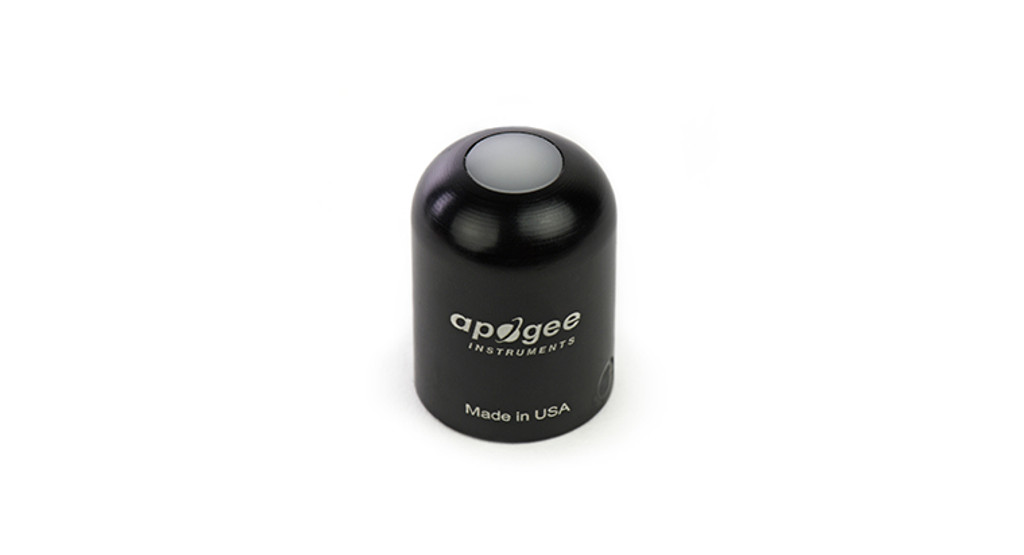

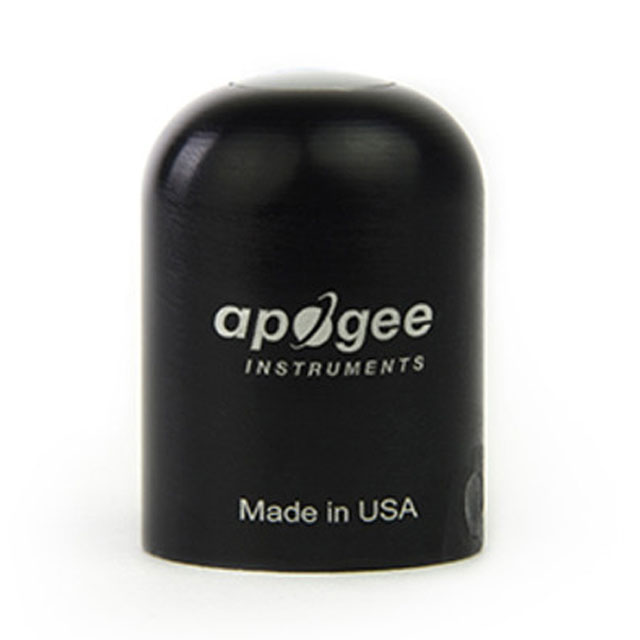

Apogee Instruments SP series pyranometers consist of a cast acrylic diffuser (filter), photodiode, and signal processing circuitry mounted in an anodized aluminum housing, and a cable to connect the sensor to a measurement device. Sensors are potted solid with no internal air space and are designed for continuous total shortwave radiation measurement on a planar surface in outdoor environments. SP series sensors output an analog voltage that is directly proportional to total shortwave radiation from the sun. The voltage signal from the sensor is directly proportional to radiation incident on a planar surface (does not have to be horizontal), where the radiation emanates from all angles of a hemisphere.

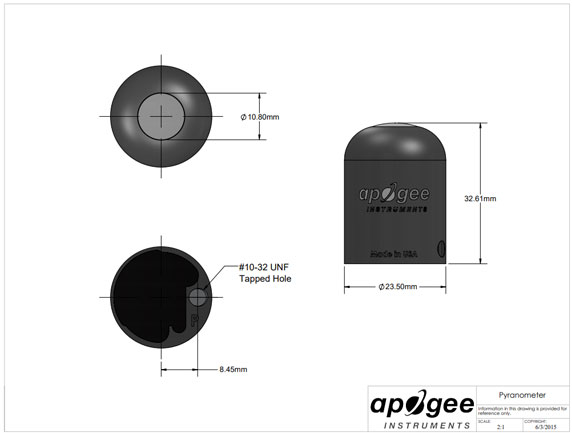

SP-110-SS drawing：

Specifications of SP-110-SS:

ISO 9060:2018	Class C (fast response)
Power Supply	Self-powered
Sensitivity	0.2 mV per W mˉ2
Calibration Factor	5 W mˉ2 per mV (reciprocal of sensitivity)
Calibration Uncertainty at 1000 W mˉ2	Less than 3 %
Calibrated Output Range	0 to 400 mV
Measurement Repeatability	Less than 1 %
Non-stability (Long-term Drift)	Less than 2 % per year
Non-linearity	Less than 1 % (up to 2000 W mˉ2)
Response Time	Less than 1 ms
Field of View	180?
Spectral Range	360 to 1120 nm (wavelengths where response is 10 % of maximum)
Directional (Cosine) Response	± 5 % at 75? zenith angle
Temperature Response	0.04 ± 0.04 % per C
Operating Environment	-40 to 70 C; 0 to 100 % relative humidity; can be submerged in water up to depths of 30 m
Dimensions	24 mm diameter, 33 mm height
Mass (with 5 m of cable)	90 g
Warranty	4 years against defects in materials and workmanship
Manufactured	Made in the USA
