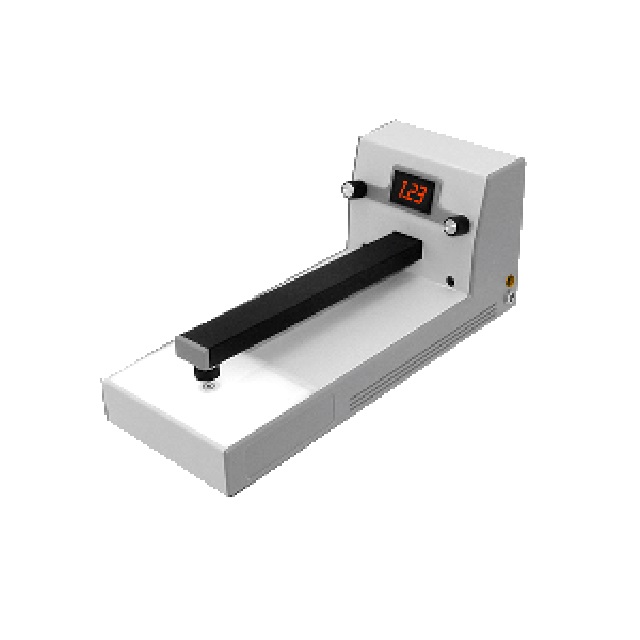

Speedmaster SM-10T and SM-10TCI Digital Transmission Densitometers Description ：

Datasheet

The Speedmaster® SM-10T and SM-10TCI Digital Transmission Densitometers are designed to meet the need for an accurate and affordably priced instrument to measure any NDT x-ray, or processor control test films. The benefit of over 46 years of ESECO’s experience in designing and building reliable quality instruments has been applied to the portable SM-10Tand SM-10TCI.

The proprietary technology employed assures instant, accurate and repeatable results that rival the same high standards of more expensive units. Featuring total accuracy of +/- .02 from 0.00 to 5.00 Optical Density and compliant with ANSI Standard 5/2-1985 / NBS Standard 1009 – Reference Material ID 057901.

Low power-consuming components and extended battery life features are provided in the automatic “stand-by” mode. For added convenience, it may be operated with the UL/CSA-approved plug-in a/c power adapter furnished with the Speedmaster SM-10T and SM-10TCI.

The rugged durability, minimal drift, and no warm-up time provide fast dependable readings. To illuminate the reading stage, just depress and release the sensor probe. Then simply position the film to be measured over the target aperture and depress the sensor probe. The large E-Z read digital meter instantly displays the reading. It will return to the energy-saving “stand-by” mode automatically.

Backed by ESECO’s established ONE YEAR “NO HASSLE” WARRANTY makes the Speedmaster SM-10T and SM-10TCI the ideal cost-effective choice for film processing quality assurance.

Measuring Range 0.00 to 4.00 D

Accuracy ± 0.02 D / Repeatability ± 0.01 D

No Warm-up Time

Portable Power Source (9-volt Alkaline Battery Included)

Weight 5.9 oz. / 167.2 grams

Dimensions Height: 2.5 Inches (6.35 cm) / Width: 1.5 Inches (3.81 cm) Length: 4.75 Inches / (12.06 cm)
