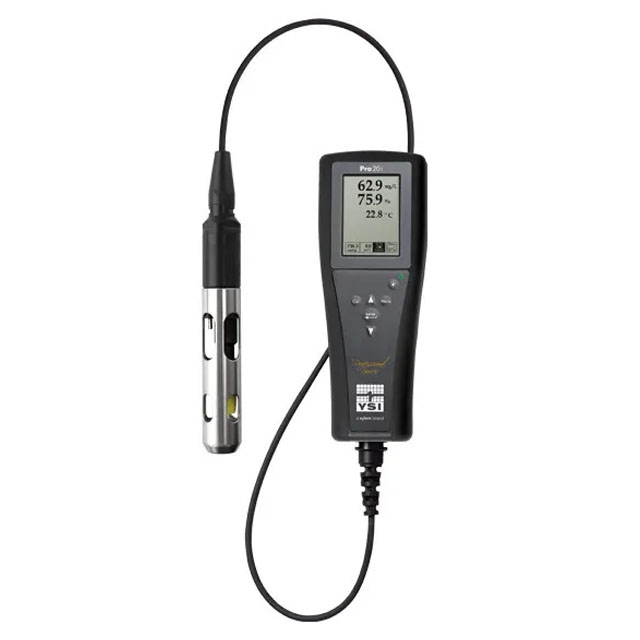

YSI Pro20i Dissolved Oxygen Meter

Updated:2025-03-13

Brand:YSI
Model：Pro20i
Description: Dissolved oxygen and temperature handheld instrument with integral (i.e. non-detachable) cable. The Pro20i is a direct replacement for the model 55 and 550A dissolved oxygen instruments. EPA approved
Data download

Feedback
WeChat

QQ

Online Service

Product Details

Pro20i Dissolved Oxygen Meter Introduction：

user's manual

Easy to use, rugged and reliable, the YSI Pro20i provides everything you need in a handheld instrument for the measurement of dissolved oxygen. User-friendly and convenient calibration routine and 50 data set memory. A true field instrument with IP67 waterproof, rubber over molded case, and 1-meter drop tests ensure durability to provide years of sampling even in the harshest field conditions.

Features Include:

Integral (i.e. built-in) cable with 1- 4- 10-m field cable; user-replaceable DO sensors
One Touch Cal allows for easy DO calibrations within 3 seconds with the press of a button. Automatic barometric pressure compensation.
Quick response times; 95% response time in approximately 8 seconds with standard membrane (fastest response time on the market)
Stores 50 data sets; no need to write down data
Large graphic, backlit display and glow in the dark keypad
A true field instrument - the display is visible when wearing polarized sunglasses
Tough. IP-67, impact-resistant, waterproof case. Waterproof with and without the battery cover
Rubber over molded case provides extra durability
Multiple languages: English, Spanish, French, and German
3-year instrument; 2-year integral cable; 1-year polarographic sensors; 6-month galvanic sensor warranty

The Pro20i features an integral cable, but the Pro20 features a user-replaceable (i.e. detachable) cable. Longer cables are also available for the Pro20, as is a BOD probe/cable assembly.

Specifications：

Cable Options	1- 4- 10-m lengths (3.28, 13.1, 32.8 ft.)
Certifications	RoHS, CE, WEEE, IP-67 waterproof, 1-meter drop test
Languages	English, Spanish, German, French
Memory	50 data sets
Power	2 alkaline C-cells providing ~400 hours of battery life (without backlight); low battery indicator when 1 hour is left
Size	8.3 cm width x 21.6 cm length x 5.6 cm depth (3.25 in. x 8.5 in. x 2.2 in.)
Warranty	3-year instrument; 2-year cable; 1-year polarographic sensors; 6-month galvanic sensors
Weight	475 grams (1.05 lbs.) (with batteries)
