Coherent PowerMax-RS PM1K+ Power Sensor

Updated:2025-03-13

Views:127

  • Brand: Coherent
  • Model: PowerMax-RS PM1K+
  • Description: This PowerMax-RS PM1K+ sensor is a water-cooled kW laser power sensor intended for measuring lasers up to 1000W. It has a large 50 mm diameter active area, and the spectrally flat BB+ coating is highl
  • Feedback

  • WeChat

    QQ

    Online Service

Product Details

Coherent PowerMax-RS PM1K+ Power Sensor Description：

Datasheet User's Manual

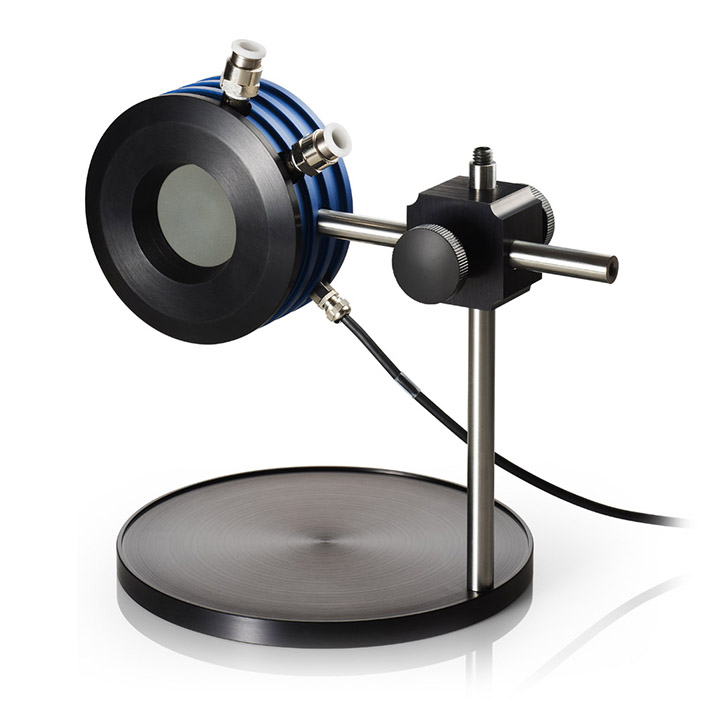

This PowerMax-RS PM1K+ sensor is a water-cooled kW laser power sensor intended for measuring lasers up to 1000W. It has a large 50 mm diameter active area, and the spectrally flat BB+ coating is highly resistant to laser damage.

The sensor is terminated in an RS232 cable that interfaces directly to a PC or industrial controller.

The RS232 cable must be powered by 5 VDC. An optional external power supply (PN 1105557) is available.

Water-cooled kW thermopile sensor with BB+ coating for measuring lasers between 5W and 1000W. Direct RS232 interface

Key Features:

5W to 1000W range

50 mm diameter active area

Spectrally flat broadband BB+ coating

0.19 to 11 μm spectral range

Direct RS232 interface

Water-cooled

ISO 17025 accredited

Specifications

Cable Type
RS232
Cooling Type
Water
Power Range
5W to 1000W
Active Area Diameter
50 mm
Detector Coating
BB+
Noise Equivalent Power (milliwatts)
100
Maximum Intermittent Power (watts)(<5 minutes)
2000
Wavelength Range (micrometers)
0.19 to 11
Maximum Power Density (kilowatts per square centimeter)
10 to 20
Maximum Energy Density (millijoules per square centimeter)
600, 1064 nm, 10 ns
Response Time, Speed-up On, 0% to 95% (seconds)
5
Window
None
Diffuser
None
Calibration Uncertainty (%)(k=2)
±3
Power Linearity (%)
±2
Calibration Wavelength (nanometers)
1070, 10600
Cable Length (meters)
2
Spectral Compensation Accuracy (%)
±1.5
