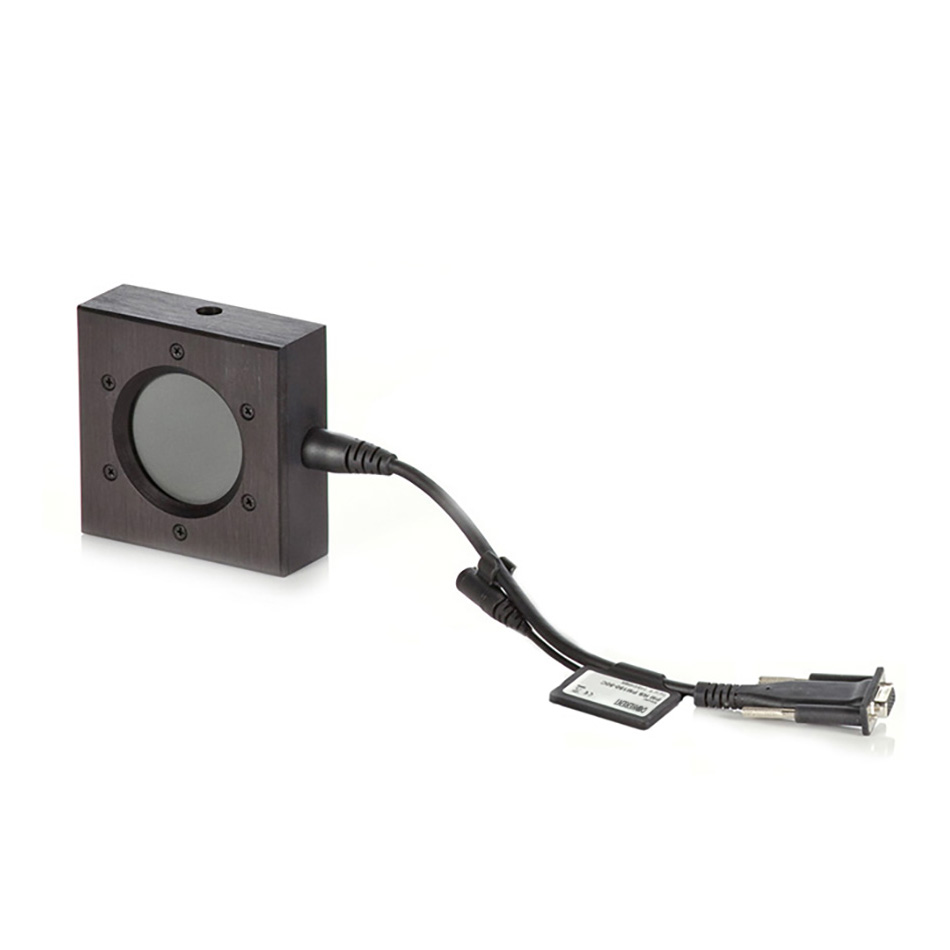

Coherent PowerMax-RS PM150-50C Power Sensor

Updated:2025-03-13

Brand: Coherent
Model: PowerMax-RS PM150-50C
Description: This PowerMax-RS PM150-50C sensor is a water-cooled laser power sensor intended for measuring lasers up to 150W with water, and up to 80W without water for short durations (up to five minutes at a tim
Data download

Feedback
WeChat

QQ

Online Service

Product Details

Coherent PowerMax-RS PM150-50C Power Sensor Description：

Datasheet 1 Datasheet 2 User's Manual

This PowerMax-RS PM150-50C sensor is a water-cooled laser power sensor intended for measuring lasers up to 150W with water, and up to 80W without water for short durations (up to five minutes at a time). This sensor model is also very commonly used for individual long-pulse energy measurements up to 150J.

The sensor is terminated in an RS232 cable that interfaces directly to a PC or industrial controller. DB25 (PN 1098412) and USB direct (PN 1168348) models are available.

Water-cooled thermopile sensor for measuring pulsed & CW lasers between 300 mW and 150W. It can be used to measure 80W without water, intermittently, for up to five minutes. Direct RS232 interface.

Key Features:

300 mW to 150W range

50 mm diameter active area

Spectrally flat broadband coating

0.19 to 11 μm spectral range

Water-cooled

ISO 17025 accredited

Direct RS232 interface

Specifications

Cable Type

RS232

Cooling Type

Water, Air (intermittent)

Power Range

300 mW to 150W (water-cooled

Active Area Diameter

50 mm

Detector Coating

Broadband

Noise Equivalent Power (milliwatts)

Maximum Intermittent Power (watts)(<5 minutes)

80, air-cooled

Long-Pulse Joules Range (joules)

1 to 150

Wavelength Range (micrometers)

0.19 to 11 μm

Maximum Power Density (kilowatts per square centimeter)

6 kW/cm2

Maximum Energy Density (millijoules per square centimeter)

600 (1064 nm, 10 ns)

Response Time, Speed-up On, 0% to 95% (seconds)

Window

None

Diffuser

None

Calibration Uncertainty (%)(k=2)

±2

Power Linearity (%)

±1

Spectral Compensation Accuracy (%)

±1.5

Calibration Wavelength (nanometers)

10600

Cable Length (meters)

0.3
