PQ-510：microCache and Full-spectrum Quantum with 2 meter cable

Updated:2025-03-13

Brand: ApogeeAPOGEE
Model: PQ-510
Description: This promotional package includes a SQ-500-SS2 Full-spectrum Quantum sensor (with a 2 meter cable), a microCache Bluetooth micro-logger, an AA-090 protective Neoprene Case, an extra 2545 microCache ba
Data download

Feedback
WeChat

QQ

Online Service

Product Details

Overview of PQ-510 - microCache and Full-spectrum Quantum with 2 meter cable：

User's Manual

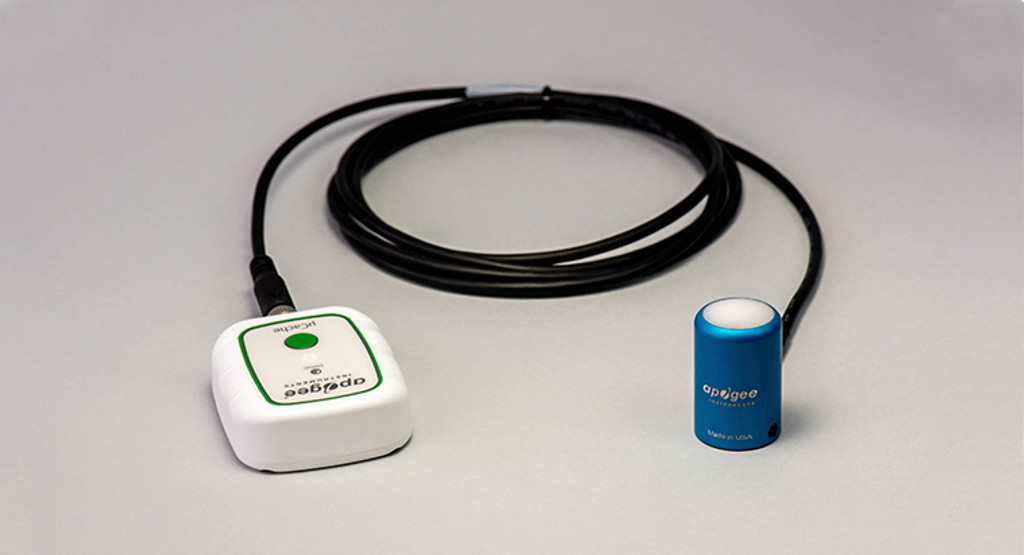

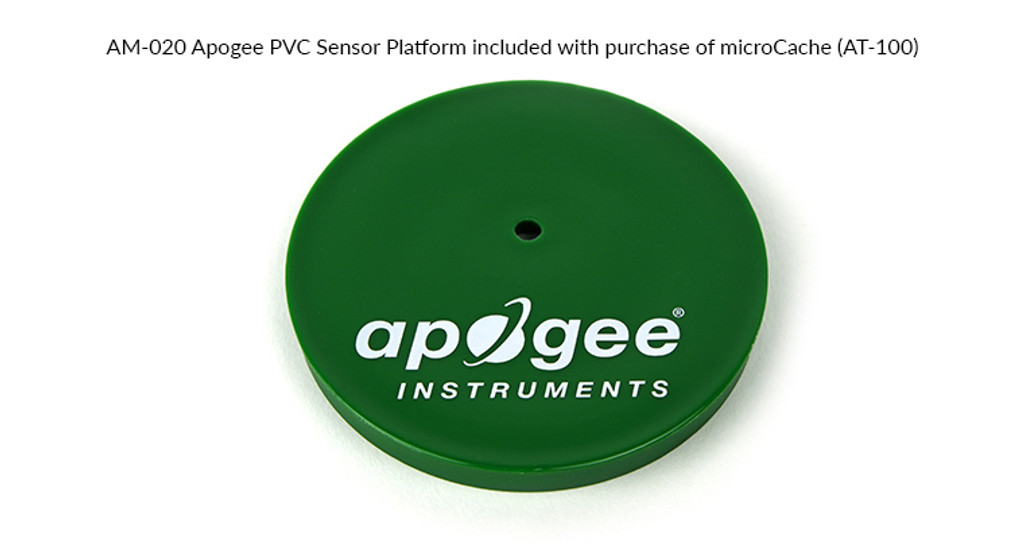

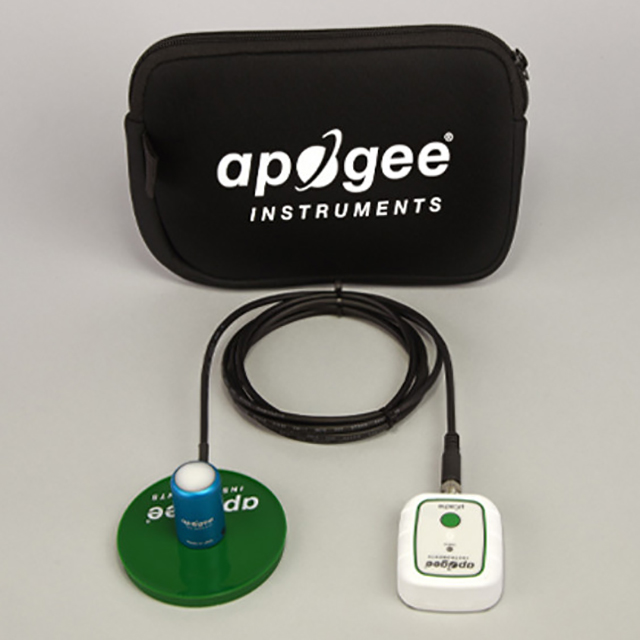

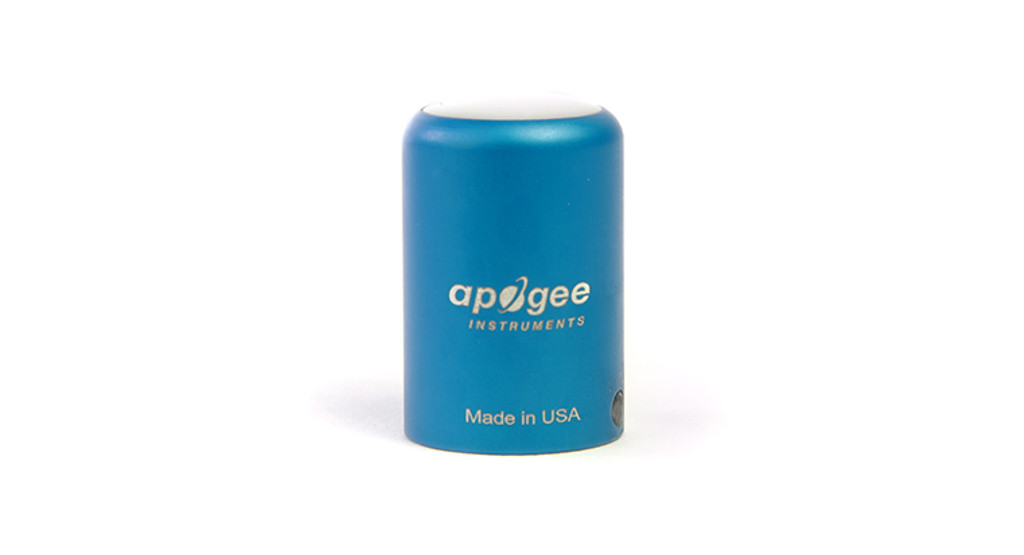

This promotional package includes a SQ-500-SS2 full spectrum quantum sensor (with 2 meters of cable), a micro Cache Bluetooth micro recorder, an AA-090 neoprene protective sleeve, an additional 2545 micro Cache battery and an AM-020 Apogee PVC sensor platform. The SS2 model's longer 2 meter cable allows the microcache to be placed farther away from the sensor, for example when used with coral reef tanks or for other applications. After pairing, these two devices are powerful tools for monitoring photosynthetically active radiation, with research level accuracy, and can achieve good sample growth.

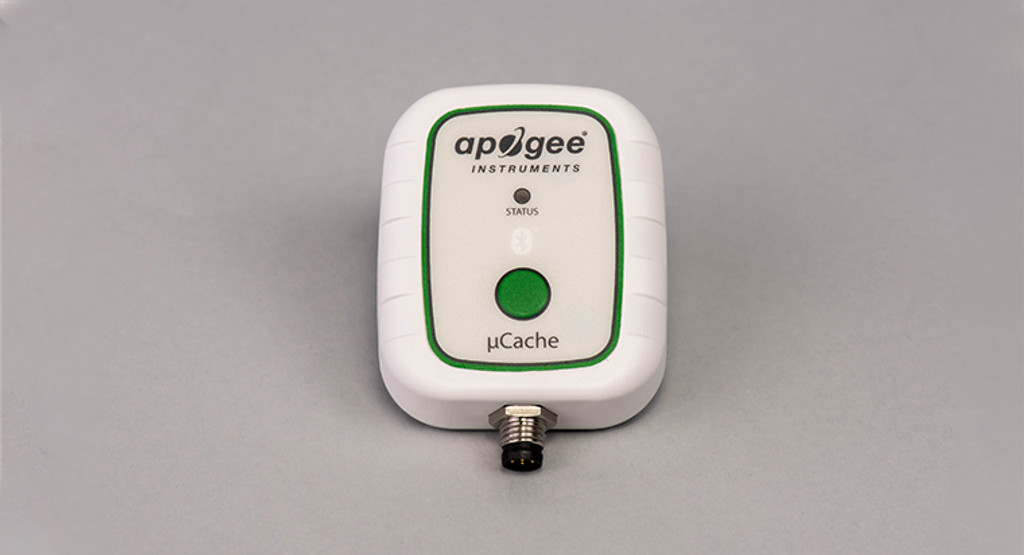

The new AT-100 microCache (μ Cache) micro recorder is a rugged, independent battery powered device that can collect more than 400000 data points, and use our free Apogee Connect application to connect your sensor to your iOS or Android device through Bluetooth. The application allows you to perform real-time measurements, set custom data recording intervals, monitor daylight integration and draw charts, ensure light cycles, download data sets, and more.

PQ-510 Drawings:

PQ-510 Specification:

Power Supply	Self-powered
Output (Sensitivity)	0.01 mV per μmol mˉ2 sˉ1
Calibration Factor (Reciprocal of Sensitivty)	100 μmol mˉ2 sˉ1 per mV
Calibration Uncertainty	± 5 %
Calibrated Output Range	0 to 40 mV
Measurement Range	0 to 4000 μmol mˉ2 sˉ1
Measurement Repeatability	Less than 0.5 %
Long-term Drift	Less than 2 % per year
Non-linearity	Less than 1 % (up to 4000 μmol mˉ2 sˉ1)
Response Time	Less than 1 ms
Field of View	180?
Spectral Range	389 to 692 nm ± 5 nm (wavelegths where response is greater than 50 % of maximum)
Spectral Selectivity	Less than 10 % from 412 to 682 nm ± 5 nm
Directional (Cosine) Response	± 5 % at 75? zenith angle
Azimuth Error	Less than 0.5 %
Tilt Error	Less than 0.5 %
Temperature Response	-0.11 ± 0.04 % per ℃
Uncertainty in Daily Total	Less than 5 %
Detector	Blue-enhanced silicon photodiode
Housing	Anodized aluminum body with acrylic diffuser
IP Rating	IP68
Operating Environment	-40 to 70 ℃; 0 to 100 % relative humidity; can be submerged in water up to depths of 30 m
Dimensions	24 mm diameter, 37 mm height
Mass (with 5 m of cable)	100g
Communication Protocol	Bluetooth® Low Energy (Bluetooth 4.0+)
Bluetooth Range	~45 m (line-of-sight)
Data Logging Capability	Averaging Interval: 1-60 minutes; Sampling Interval: ≥ 1 second
Data Log Capacity	Over 400,000 Entries (~9 months at a 1-minute logging interval)
Time Accuracy	± 30 seconds per month at 0° C ~ 70° C
Battery Type	2/3 AA 3.6 Volt Lithium Battery
Battery Life	~1 year w/ 10-second sampling interval and an average of 5 minutes daily connected time;~2 years w/ 60-second sampling interval and an average of 5 minutes daily connected time
Operating Environment	-40 to 85 ℃
Dimensions	66 mm length, 50 mm width, 18 mm height
Weight	52 g
IP Rating	IP67
IP67	M8
Bluetooth Module	BMD-340 Contains FCC ID: 2AA9B10 IC: 12208A-10
ADC Resolution	24 bits
Warranty	4 years against defects in materials and workmanship
Manufactured	Made in the USA
