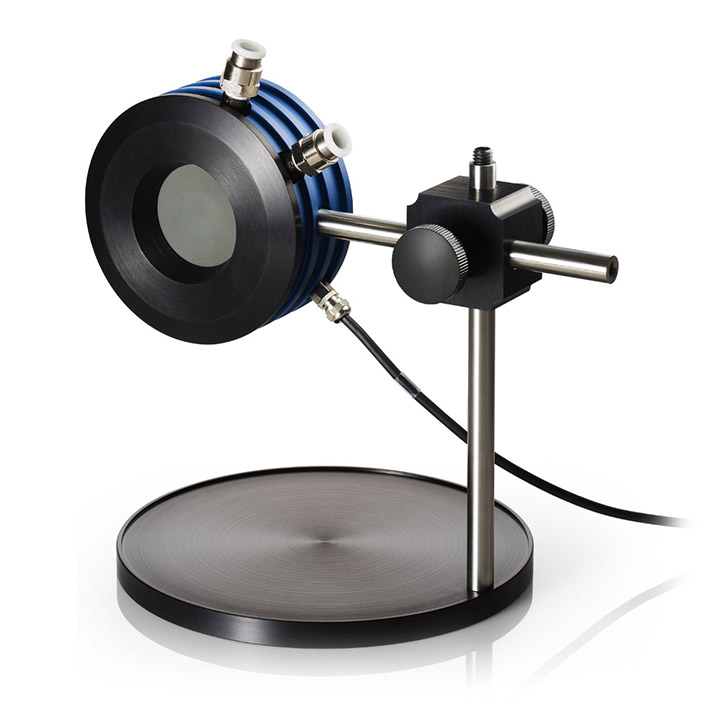

Coherent PM3K+ Laser Power Sensor

Updated:2025-03-13

Views:131

  • Brand: Coherent
  • Model: PM3K+
  • Description: This PM3K+ sensor is a water-cooled kW laser power sensor intended for measuring lasers up to 3000W. It has a large 50 mm diameter active area, and the spectrally flat BB+ coating is highly resistant
  • Feedback

  • WeChat

    QQ

    Online Service

Product Details

Coherent PM3K+ Laser Power Sensor Description：

Datasheet

This PM3K+ sensor is a water-cooled kW laser power sensor intended for measuring lasers up to 3000W. It has a large 50 mm diameter active area, and the spectrally flat BB+ coating is highly resistant to laser damage.

Water-cooled kW thermopile sensor with BB+ coating for measuring lasers between 5W and 3000W. The sensor is terminated in a SmartSensor DB25 cable and is directly compatible with all power meters in the catalog.

Key Features:

5W to 3000W range

50 mm diameter active area

Spectrally flat broadband BB+ coating

0.19 to 11 μm spectral range

Water-cooled

ISO 17025 accredited

Specifications

Cable Type
PM DB-25
Cooling Type
Water
Power Range
5W to 3000W
Active Area Diameter
50 mm
Detector Coating
BB+
Noise Equivalent Power (milliwatts)
100
Maximum Intermittent Power (watts)(<5 minutes)
3000
Wavelength Range (micrometers)
0.19 to 11
Maximum Power Density (kilowatts per square centimeter)
3.8 to 12
Maximum Energy Density (millijoules per square centimeter)
600, 1064 nm, 10 ns
Response Time, Speed-up On, 0% to 95% (seconds)
5
Window
None
Diffuser
None
Calibration Uncertainty (%)(k=2)
±3
Power Linearity (%)
±2
Calibration Wavelength (nanometers)
1070, 10600
Cable Length (meters)
2
Spectral Compensation Accuracy (%)
±1.5
