SR05-LI19 Solar Radiation Sensor

Updated:2025-03-13

Brand: Hukseflux
Model: SR05-LI19
Description: SR05 is a solar radiation sensor that is applied in most common solar radiation observations. Model version SR05-A1 complies with the spectrally flat Class C specifications of the ISO 9060 standard, a
Data download

Feedback
WeChat

QQ

Online Service

Product Details

SR05-LI19 Solar Radiation Sensor Description：

User's Manual Datasheet

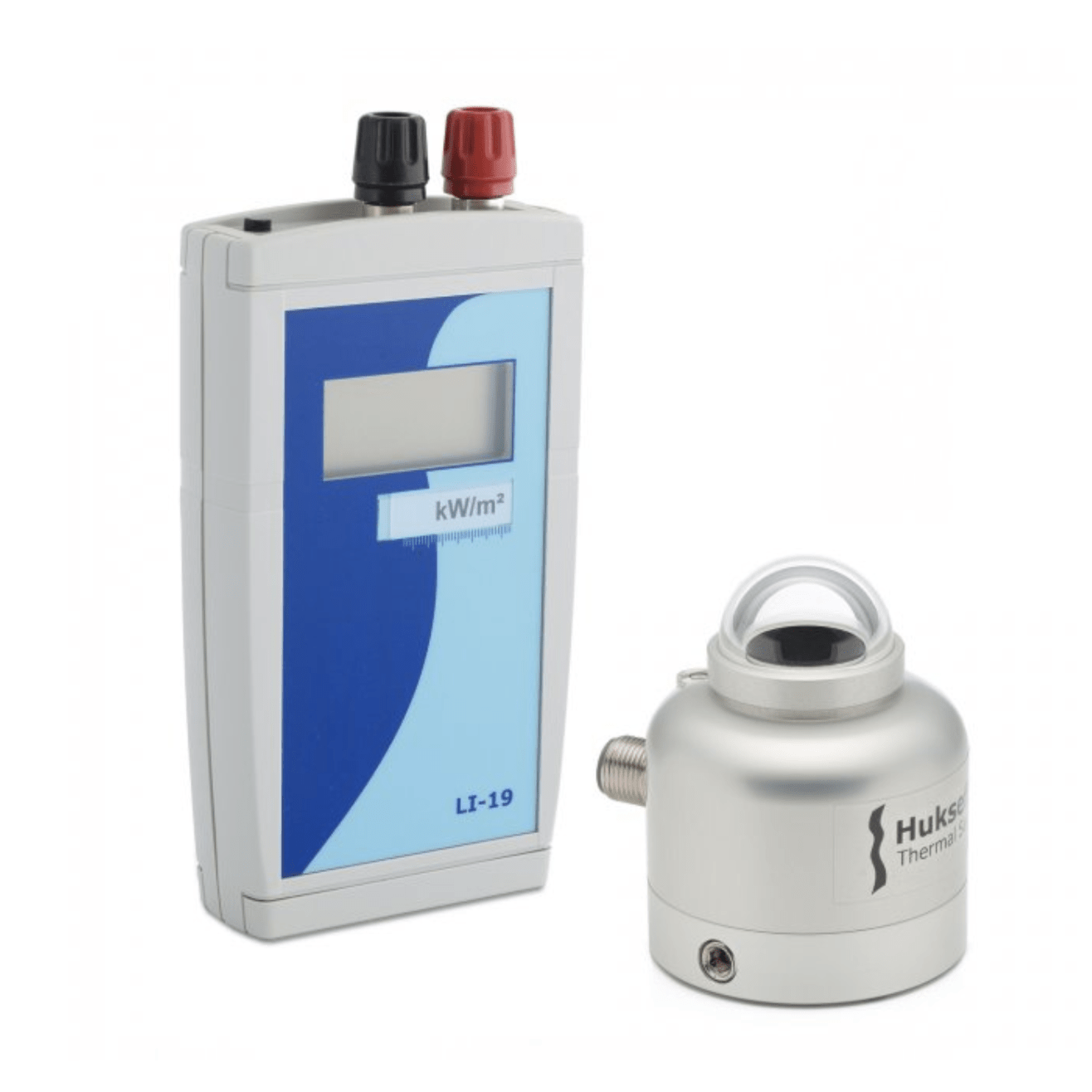

SR05 is a solar radiation sensor that is applied in most common solar radiation observations. Model version SR05-A1 complies with the spectrally flat Class C specifications of the ISO 9060 standard, and offers analogue millivolt output. LI19 is a high accuracy handheld read-out unit / datalogger. The SR05-LI19 combination is well suited for mobile measurements and short term datalogging. LI19 displays the measured radiation and stores measured data. Once programmed with the sensitivity of SR05, the display will show the actual value of the solar radiation in W/m2.

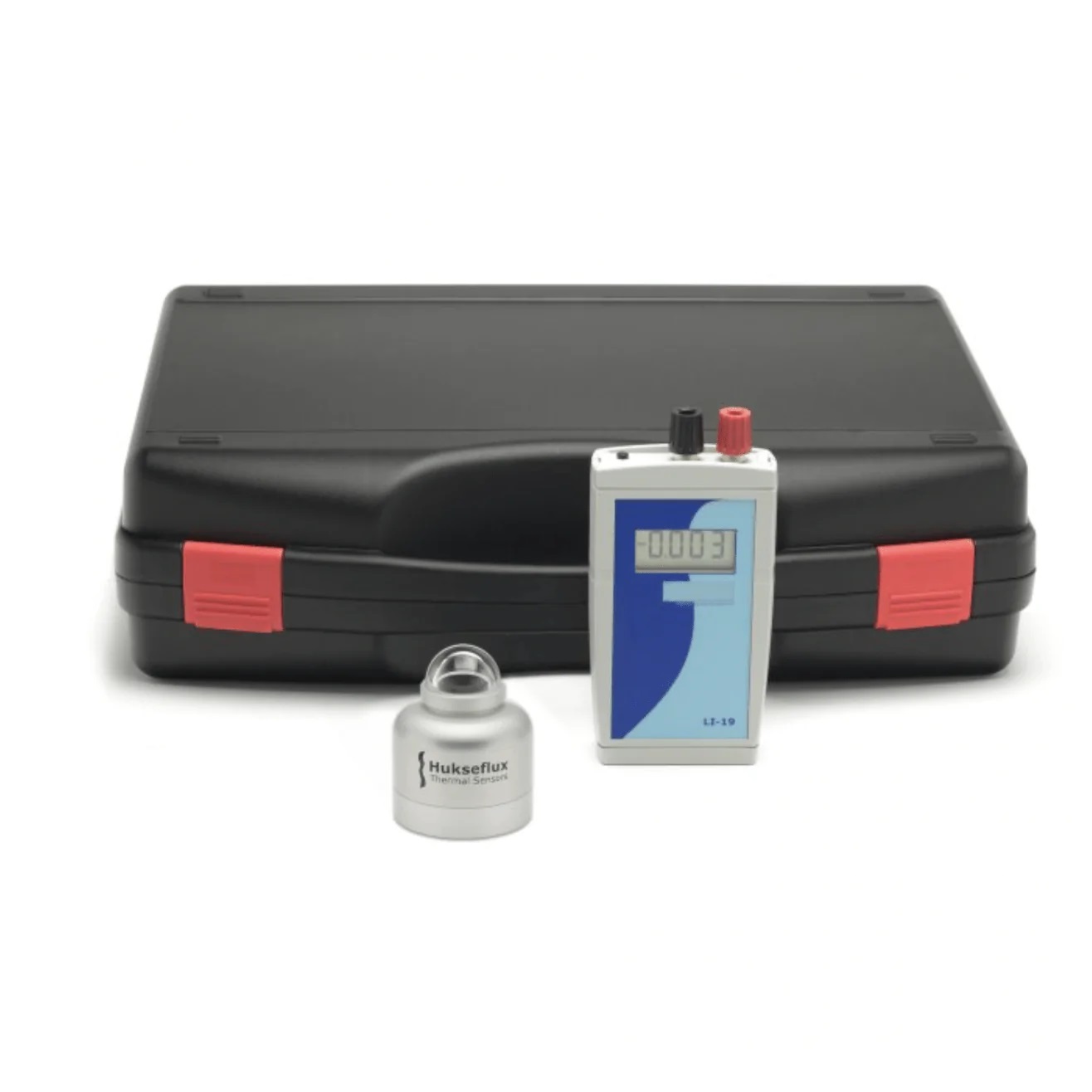

The system is supplied in a practical transport case, for easy transport and protection during field measurement campaigns.LI19 may also be used with other pyranometers and heat flux sensors

Operation of SR05-LI19 is easy

SR05 measures the solar radiation received by a plane surface from a 180 ° field of view angle. This quantity, expressed in W/m2, is called “hemispherical” solar radiation. SR05 pyranometer can be employed outdoors under the sun, as well as indoors with lamp-based solar simulators. Its orientation depends on the application and may be horizontal, tilted (for plane of array radiation) or inverted (for reflected radiation).

The system is supplied in a practical transport case, for easy transport and protection during field measurement campaigns. Also included are the necessary software, AA-type batteries and a USB cable. Fresh batteries allow for more than 50 days of operation. LI19 may also be used with other pyranometers and heat flux sensors.

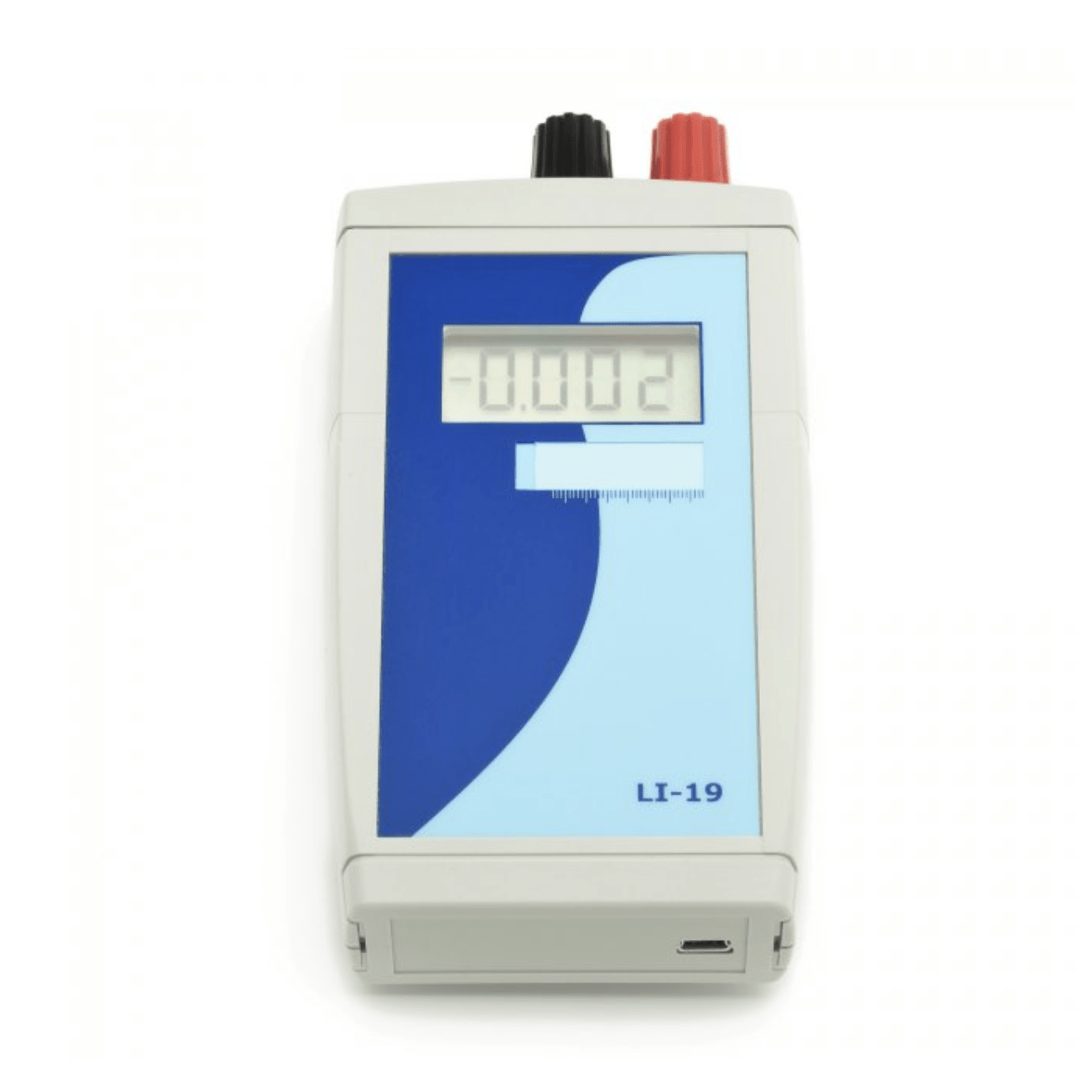

LI19 displays the measured radiation and stores measured data. Once programmed with the sensitivity of SR05, the display will show the actual value of the solar radiation in W/m2. Programming LI19 is done through its PC user interface.

Suggested Use：

Short-term field measurement of solar radiation

Education in solar energy

Areas of Application：

Building physics / insulation, thermal comfort and energy budget measurement

Meteorology / surface energy flux measurement

Solar energy / PV system performance monitoring

Accessories：

PMF01

PMF02

SR05-LI19 Solar Radiation Sensor Specifications：

Measurand	hemispherical solar radiation
ISO 9060:2018 classification	spectrally flat Class C (second class)
IEC 61724-1:2017 compliance	class C
Application	PV monitoring small sizedmeteorology / climatologyother
Heater	NO
Output	mV
Calibration uncertainty	< 1.8 % (k = 2)
Calibration traceability	to WRR
Spectral range	285 to 3000 x 10?? m
Sensitivity (nominal)	10 x 10?? V/(W/m2)
Temperature response	< ± 3 % (-10 to +40 °C)
Standard cable length	3m
Output on display	solar radiation
Stored measurement definition	minimum maximum and average over storage interval with conversion to W/m2
A/D conversion	16 bits
Temperature dependence	< 0.5 % + 3 x 10?? V over rated range
Compatibility	IMT-Solar Si-RS485TC-T-MB; other cells upon request
Display refreshment rate	1 s?1
Battery type	2×AA
Battery life	> 50 days (on fresh batteries)
Storage interval range	2 to 65535 s (selectable)
Storage capacity	3518 measurements
Rated operating temperature range	-10 to +40 °C
