L50(150)A-LP2-35 P/N7Z02785 Laser Measurement Sensor

Updated:2025-03-13

Brand: Ophir
Model: L50(150)A-LP2-35
Description: The L50(150)A-LP2-35 is a thermal power/energy laser measurement sensor for high power density and long pulse lasers. It has a 35mm aperture and can measure from 100mW to 50W continuously and to 150W
Data download

Feedback
WeChat

QQ

Online Service

Product Details

L50(150)A-LP2-35 P/N7Z02785 Laser Measurement Sensor Introduction：

The L50(150)A-LP2-35 is a thermal power/energy laser measurement sensor for high power density and long pulse lasers. It has a 35mm aperture and can measure from 100mW to 50W continuously and to 150W intermittently. It can measure energy from 40mJ to 3000J. The sensor is able to measure high power lasers of up to 4000W by measuring the energy of 0.4 - 4s exposure to the laser. The high damage threshold LP2 absorber covers the spectral range from 0.25 to 2.2μm. The sensor comes with a standard 1.5 meter cable for connecting to a meter or PC interface.

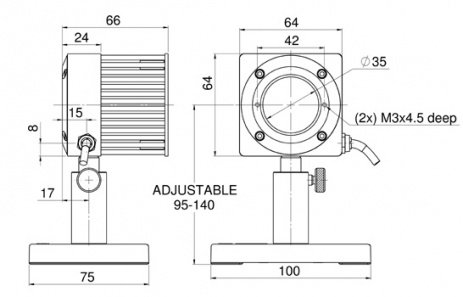

L50(150)A-LP2-35 P/N7Z02785 Laser Measurement Sensor Drawing：

L50(150)A-LP2-35 Drawing

L50(150)A-LP2-35 P/N7Z02785 Laser Measurement Sensor Specification：

Absorber Type	LP2
Aperture	?35mm
Spectral Range	0.25-2.2μm
Power Range	100mW-150W
Energy Range	40mJ-3000J
Dimensions	64 L x 64 W x 66 D (mm)
Max Pulse Energy	3000J
Max Average Power Density	33kW/cm2
Response Time	2 s
Max Energy Density (for <100ns)	0.1J/cm2
Max Energy Density (for 2ms)	130J/cm2
Max Average Power	150W
