Gentec-EO HP280A-30KW-HD-IMP-D0 High Power Detector

Updated:2025-03-13

Views:149

Product Details

Gentec-EO HP280A-30KW-HD-IMP-D0 High Power Detector Description:

Datasheet(CN) Datasheet(EN) PC-Gentec-EO User's Manual HP User's Manual

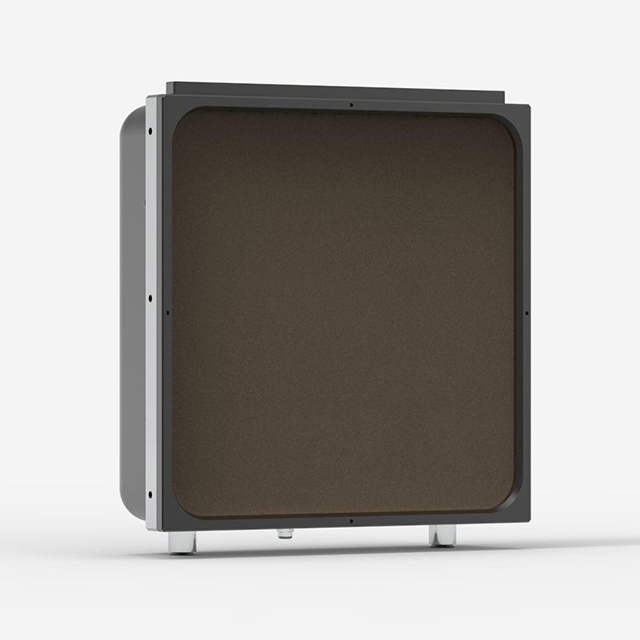

Gentec-EO HP280A-30KW-HD-IMP-D0 High power detector for laser power measurement up to 30 000 W.

Broadband HD absorber: High performance for high-power lasers

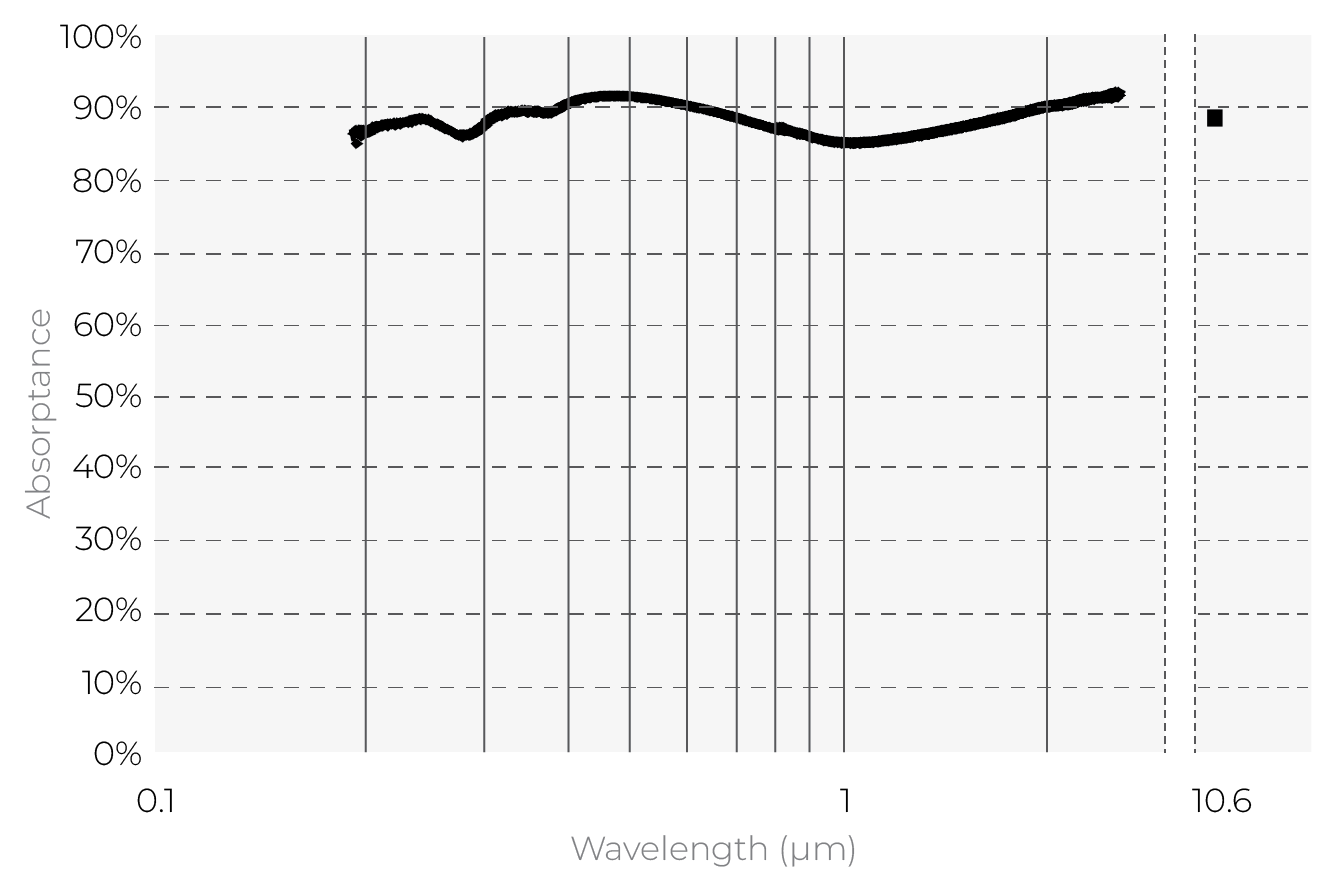

Our HD absorber offers high damage thresholds and a flat broadband spectral response for high-power lasers in the kilowatt range. Detectors with this absorber are versatile and can cover several high-power measurement needs.

Low risk of damaging the equipment thanks to high damage thresholds

Useful for measuring a wide range of high-power lasers

Use it with our included PC-Gentec-EO software用

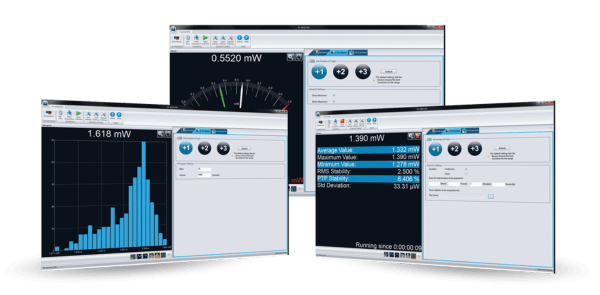

Read your measurements directly on your PC thanks to our free proprietary software PC-Gentec-EO. The software supports the following product series: P-LINK, HP, INTEGRA, U-LINK, and MAESTRO.

Practical displays: real-time, scope, needle, averaging, histogram, and statistics

Useful features such as data logging and correction factors

Many statistics available: current value, average value, maximum value, minimum value, RMS stability, PTP stability, repetition rate, average power, and STD deviation

Faster measurement with XNR Anticipation

Measure laser power up to 10x faster (model-dependant) with XNR AnticipationTM. Our proprietary algorithm looks at the rate at which the signal increases or decreases and combines this with calibration data to predict the result. The measurement is therefore calculated and displayed faster than the natural response of the detector.

Save several seconds to tens of seconds for each measurement

Shorter operation interruption

Faster laser output diagnostics

Increased productivity

No compromise on measurement accuracy

Key Features

High Power Handling

Handles up to 30 kW of continuous power with our standard models. Custom models are available for higher powers (See SUPER HP).

Stable Reading

Less sensitive to variations in water cooling temperature than any other high-power water-cooled meter on the market

Large Aperture

Our standard HP models (4KW, 12KW, 15KW and 30KW) have a very large effective aperture of up to 280 mm to accommodate even the largest laser beams. Larger apertures with various shapes are available upon request (See SUPER HP).

Available with YAG and CO2 Calibration

All HP Models can be calibrated at YAG and CO2 wavelengths with a calibration uncertainty of +/- 5%

Direct USB Connection to a PC

Each head comes with both a DB-15 connector (for use with a Gentec-EO monitor) and a USB2.0 output for direct connection to a PC.

Specifications

Measurement capabilities
Maximum average power (continuous) 30000 W
Minimum average power 1000 W
Noise equivalent power 30 W
Spectral range 0.193 - 20 μm
Typical rise time 25 s
Power calibration uncertainty ±5 %
Repeatability ±2 %
Back reflections ~ 15 %
Linearity with power ±2 %
Linearity vs beam diameter ±1.0 %
Linearity vs beam position ±1.0 %
Water requirements
Required cooling flow 0-30 kW: (15 - 18) LPM < ±1 LPM/min, 0-10 kW: (12 - 15) LPM < ±1 LPM/min
Temperature range 15 – 25 °C
Rate of temperature change < ±3°C/min
Maximum water pressure 552 kPa (80 psi)
Damage thresholds
Maximum average power density 6.5 kW/cm2
Controller and GUI specifications
Data display Real time, scope, needle, averaging, histogram and statistics
Analog output 0-2 Volts
Serial commands via USB
External power supply Through USB or Gentec-EO displays & PC interfaces
Display type None
Physical characteristics
Cooling Water
Aperture width 280 mm
Aperture height 280 mm
Absorber HD
Dimensions 314H x 324W x 89D mm
Weight 16 kg
