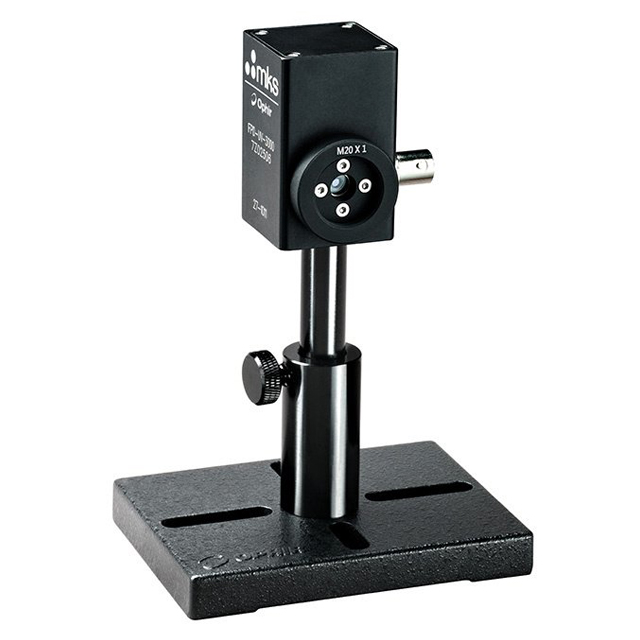

The FPD-UV-3000 is a fast optical detector for visualizing and measuring the temporal characteristics of laser beams in the spectral range from 193 nm to 1100 nm. It has a UV enhanced silicon PIN photodiode and is designed to convert optical signals into electrical signals which are then measured with third party measurement instrumentation such as oscilloscopes or spectrum analyzers for measurement. The FPD-UV-3000 has a rise time of 3 nsec. Its reverse bias voltage is provided by an external DC power supply (included).

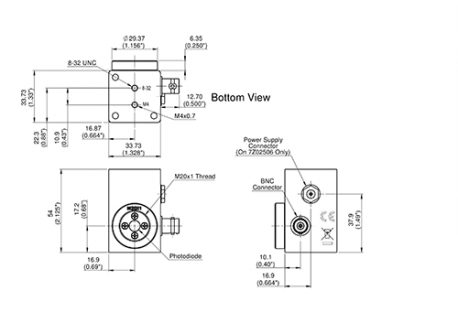

FPD-UV-3000 Drawing
| Detector Type | UV-Si |
| Rise Time/Fall Time | 3 nsec |
| Spectral Range | 193-1100 nm |
| Active Area Diameter | 2.55 mm |
| Noise Equivalent Power | <0.10 pW/√Hz |
| Dimensions | 54 L x 34 W x 40 D (mm) |
| Detector Area | 5.11 mm2 |
| Wavelength of Peak Sensitivity | 890 nm |
| Responsivity at Peak Wavelength | 0.58 A/W |
| Responsivity (Irradiance) at Peak Wavelength | 1.5 V/(W/cm2) |
| Bias Voltage | 24 VDC |
| Bias Voltage Source | External |
| Bandwidth | >118 MHz |
| Dark Current | <10 nA |
| Maximum Average Power Input | 15 mW |
| Mounting (Tapped Holes) | 8-32 & M4 |
| Output Connector | BNC |
| Accessory Threads | M20x1 |
