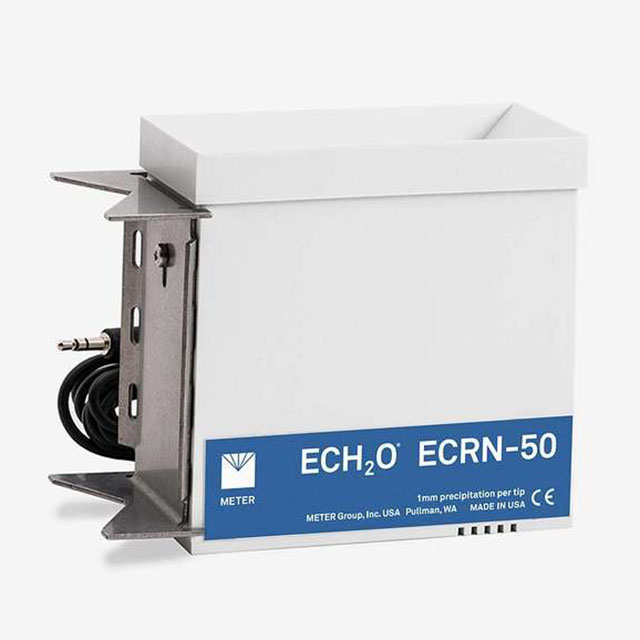

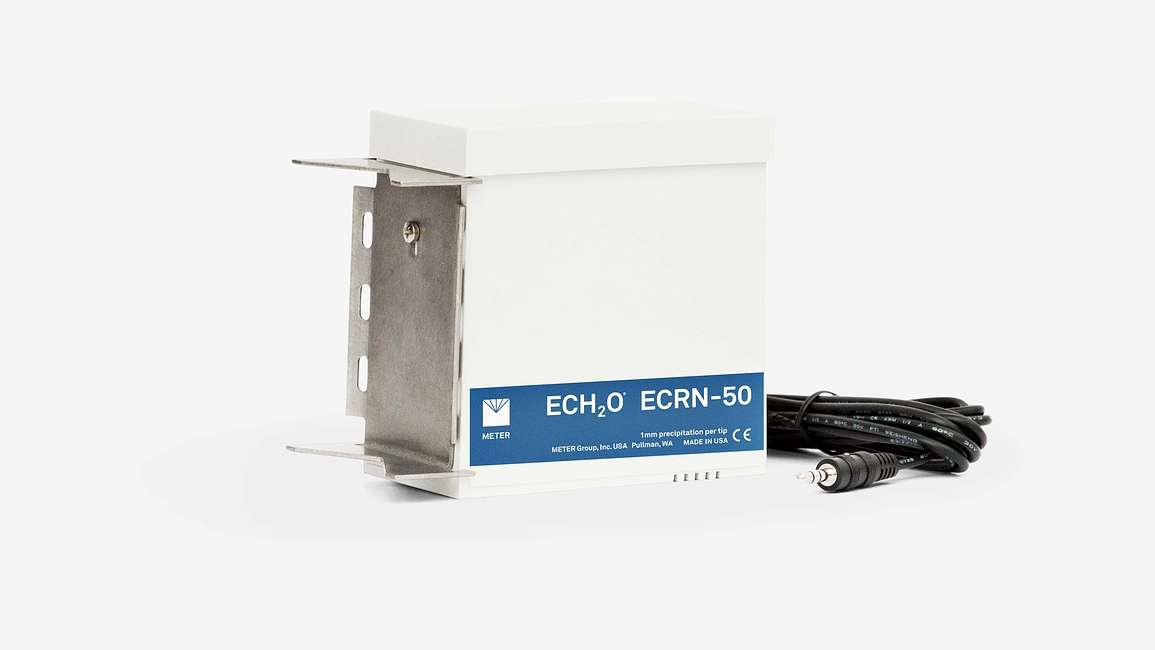

ECRN-50 Rain Gauge (Low Resolution)

Updated:2025-03-13

Brand: METER
Model: ECRN-50
Description: Rain gauge for measuring irrigation events. The ECRN-50 can be reconfigured to measure the output of irrigation systems in terms of either gallons or liters per hour.The single-spoon mechanism tips at
Data download

Feedback
WeChat

QQ

Online Service

Product Details

ECRN-50 Rain Gauge (Low Resolution) Description：

User's Manual

Low-resolution rain gauge

Rain gauge for measuring irrigation events. (For all-in-one weather monitoring, see the ATMOS 41 weather station)

Configure as volume gauge

The ECRN-50 can be reconfigured to measure the output of irrigation systems in terms of either gallons or liters per hour.

Single spoon mechanism

The single-spoon mechanism tips at 1 mm of precipitation/ irrigation; accuracy is ±2%.

Durable

Made of durable plastic that is UV, water, and frost-resistant.

ECRN-50 Rain Gauge (Low Resolution) Specification：

Resolution	1 tip
Sensor type	Single-spoon tipping bucket
Volume per tip	5.0 ml/tip
Rainfall per tip	1mm
Output	Pulse
Case material	ABS
Operating environment	0 °C to 60 °C
Cable length	5 m
Cable connector types	3.5 mm "stereo" plug
Sensor dimensions	5 cm x 10 cm
Data logger compatibility (not exclusive)	METER EM50/EM60 series, ZL6 series, ZSC, ProCheck, METER Em5b *NOTE: The older model ECRN Rain Gauge used with Em5 loggers is not compatible with the EM50
Warranty	One year, parts and labor

ECRN-50 Rain Gauge (Low Resolution) FAQ's：

1、How do I check the calibration and then recalibrate the ECRN-50 or ECRN-100 tipping bucket rain gauge?

The tipping bucket rain gauges have small stops that can be adjusted such that the bucket tips after the appropriate volume of water was collected in the bucket. Calibrate ECRN-50 when wet because a little water remains in the cup.

2、What is the volume per tip for the ECRN-50?

ECRN-50 volume per tip: 5.0 ml/tip

Rainfall per tip: 1 mm/tip
