1.3MP Monochrome 10-bit CMOS Cameras, with 32MB on-Board Memory

Updated:2025-03-13

Brand: Mightex
Model: BTN-B013-U , BTE-B013-U
Description: Mightex USB 2.0 cameras with frame buffers are optimized for machine-vision applications, and they can also be used for a wide variety of other applications such as digital microscopy and medical imag
Data download

Feedback
WeChat

QQ

Online Service

Product Details

1.3MP Monochrome 10-bit CMOS Cameras, with 32MB on-Board Memory Description：

Datasheet

Mightex USB 2.0 cameras with frame buffers are optimized for machine-vision applications, and they can also be used for a wide variety of other applications such as digital microscopy and medical imaging, where quality, ease of use, and cost-effectiveness are crucial. These cameras have built-in frame buffers, external trigger-in, strobe-out, and a powerful camera engine that supports multiple cameras. Monochrome cameras often exhibit a 20% higher spatial resolution than their color counterparts because no pixel interpolation is necessary. Without a Bayer color filter on the sensor, monochrome cameras are also more sensitive than color sensors, especially in near IR and UV regions. The frame rate can be as high as 12 fps in full resolution and up to 150 fps using ROI mode. In addition, a user-friendly GUI based application software and an SDK are provided for custom software development. A DirectShow driver and a TWAIN driver are included, and a USB command set protocol is provided for non-Windows based applications. A Linux Driver is also available upon request.

Features:

32MB on-board memory (23 frames with 8bit, and 4 frames with 10bit gray scale, at full resolution)

Switchable between 10bit and 8bit

10bit gray scale

Support simultaneous image capturing from multiple cameras

4-pin GPIOs

Higher sensitivity than color cameras, especially in IR

1280 x 1024 active imaging pixels

Ultra compact

High-speed USB2.0 (480Mb/s)

Digital output, no need for frame grabber

Custom programmable with SDK provided

DirectShow driver

TWAIN driver

USB command set protocol for non-Windows-based applications

External and software trigger

Strobe output for external flash

ROI & pixel skipping/binning

No need for external power supply

OEM versions available

Applications:

Machine vision and stereo vision

Medical imaging

Semiconductor equipment

Test instruments

High-quality ID photo capture

Document scanners

Digital microscopy

Web camera and security video

Specifications

Parameters	BTN-B013-U (C-mount)	BTE-B013-U (C-mount)	Unit

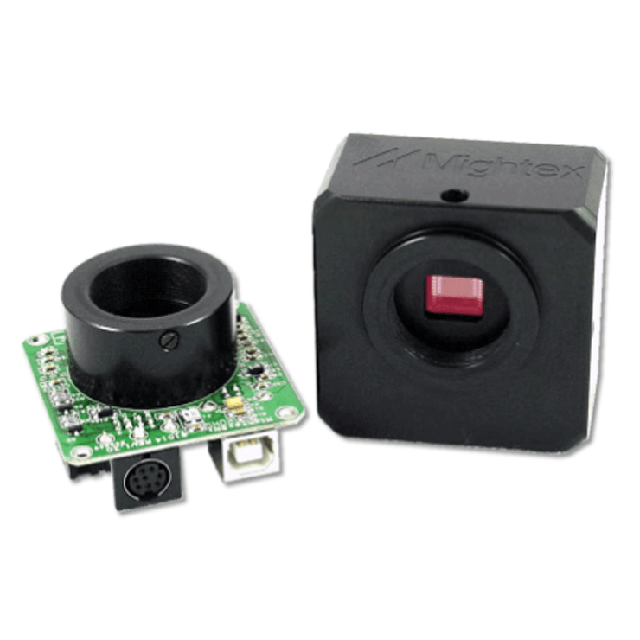

Board-Level/Enclosed	Board-Level	Enclosed
Number of GPIOs	4	4
Resolution	1,280 × 1,024 Monochrome
CMOS Chip	?" (5:4) Micron MT9M001, Rolling Shutter
Pixel Size	5.2 × 5.2		μm
Active Imager Size	6.66 × 5.32		mm
Scanning System	Progressive
Dynamic Range	68		dB
Sensor SNR	45		dB
Gray Level	10		bit
Responsivity	2.1		V/lux-sec
Frame Rates* (@48MHz Clock)	12@1280 × 1024, 18@1024 × 768, 25@800 × 600, 28@752 × 480, 33@640 × 480, 70@320 × 240		fps
On-Board Memory	32		MB
Sub Resolutions	Support Arbitrary ROI, (X, Y) with X and Y multiples of 4
Shutter Speed (Exposure Time)	0.05 ~ 750		ms
Hardware Gains	0.125× ~ 8×
Trigger Mode	With external trigger
Trigger Cable	ACC-CAM-DIN8
Strobe Out	Yes
Lens Mount	C– mount or CS-mount (M12.5-mount or custom-defined lens mount supported)
Built-in Filters	IR-cut (factory standard), IR-pass or no filter
Power Consumption	< 1.8		W
Dimension	51 × 51 × 29 (CS-mount) 51 × 51 × 34 (C-mount)	58 × 58 × 34 (CS-mount) 58 × 58 × 39 (C-mount)	mm
Weight (excluding lens)	80	150	g
