The 150W-SH is a water cooled thermal power/energy laser measurement sensor with mounting threads and with an 18mm aperture. It can measure from 60mW to 150W when water cooled. It can measure energy from 20mJ to 100J. It has the spectrally flat broadband coating covering the spectral range from 0.19 to 20μm.

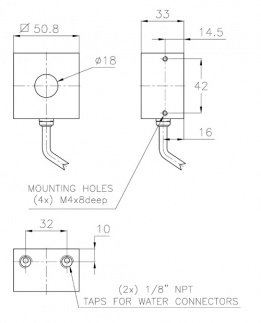

150W-SH Drawing
| Aperture | ?18mm |
| Spectral Range | 0.19-20μm |
| Power Range | 100mW-150W |
| Energy Range | 50mJ-100J |
| Dimensions | 51 L x 51 W x 33 D (mm) |
| Max Average Power Density | 12kW/cm2 at 150W |
| Response Time | 1.2 s |
| Max Energy Density(for <100ns) | 0.3J/cm2 |
| Max Energy Density(for 2ms) | 10J/cm2 |
| Max Average Power | 150W water cooled free standing |
| Communication | N.A. |
